Подшипник Bosch Rexroth LAS-E-A 30 BG [R159A43001]

Name: Подшипник Bosch Rexroth LAS-E-A 30 BG [R159A43001]
Brand: REXROTH
SKU: R159A43001
Availability: PreOrder

Артикул:R159A43001

Категория:Линейные направляющие рельсовые

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Assembly group bearing unit LAS, size 30 x 5R/10R;39 x 5R/10R

Product Description

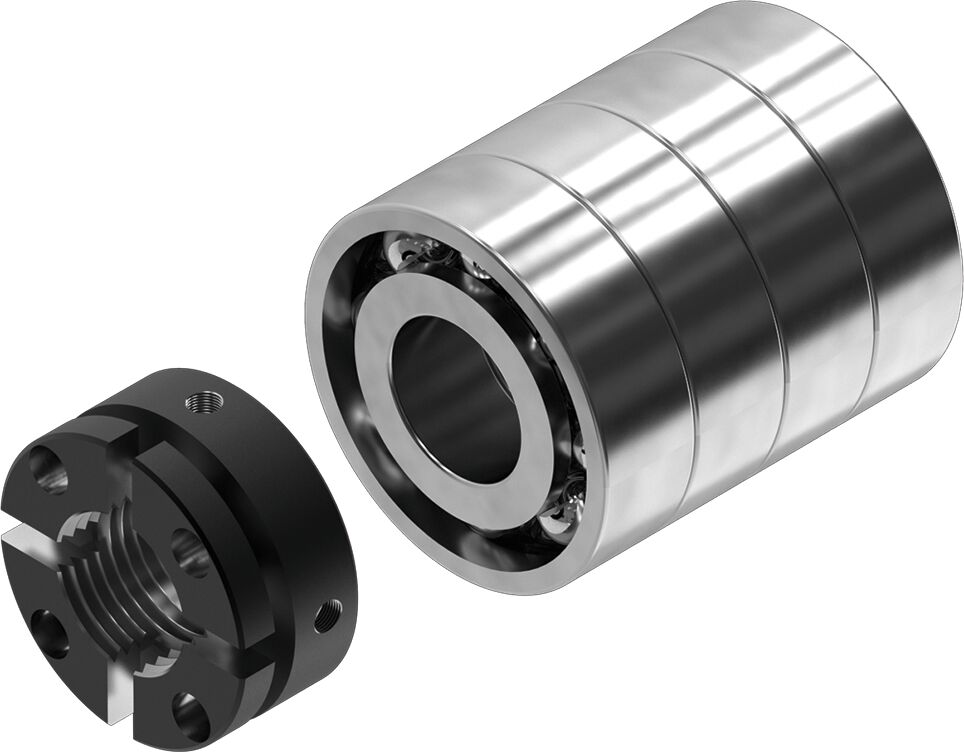

The fixed bearing consists of: Angular-contact thrust ball bearing LGS (not available individually), slotted nut NMA suitable for screw ends type◡812, 822, 832, 842

The bearing assembly consists of:angular-contact thrust ball bearing LGS as per DIN 628 (not available as a separate part)Slotted nut NMASuitable for screw end form 112, 122, 132, 142, 512, 532, 812, 822, 832, 842, 912, 922, 932, 942

Technical Specs

Характеристики

Характеристики изделия
Nominal size [mm]	30 x 5/10, 39 x 5/10
Dynamic load capacity C [N]	98300
Outer diameter D [mm]	72
Масса (кг)	1.52
Limit speed nmin [min⁻¹]	5850
Limit speed (grease) nmax	5850
Static load capacity C0 [N]	163100
Footnote maximum rotary speed nmax	Guideline values for low load on bearing, good heat dissipation, and suitable grease lubricants with low consistency
Dimension B (profiled rail systems) [mm]	76
Dimension D [mm]	72
Dimension d [mm]	30
Dimension d tolerance [mm]	-0.01
