Соединительная пластина Bosch Rexroth CKK 12-90 L BG [R037530010]

Name: Соединительная пластина Bosch Rexroth CKK 12-90 L BG [R037530010]
Brand: REXROTH
SKU: R037530010
Availability: PreOrder

Артикул:R037530010

Цена по запросу

Под заказ

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

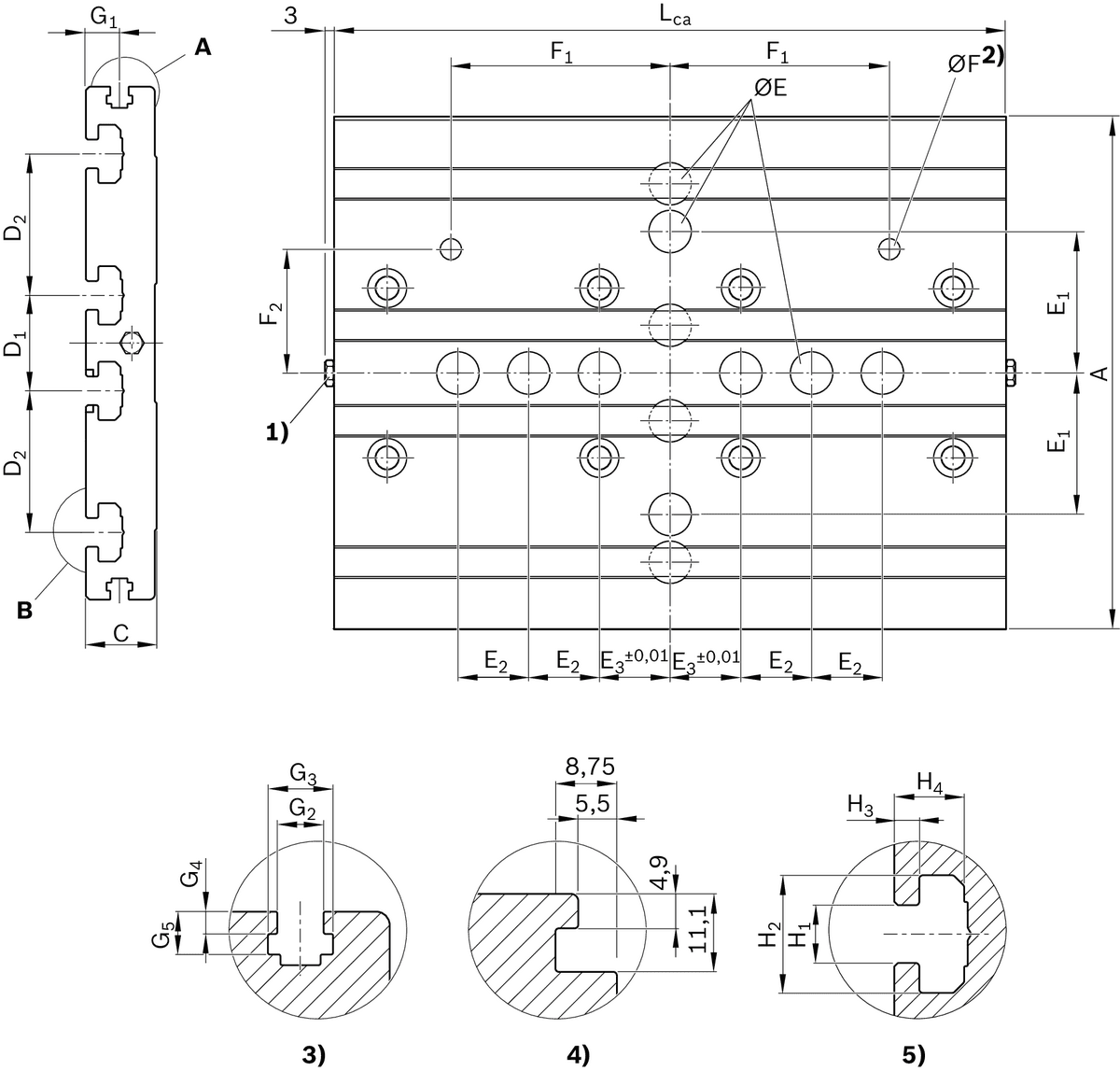

Описание

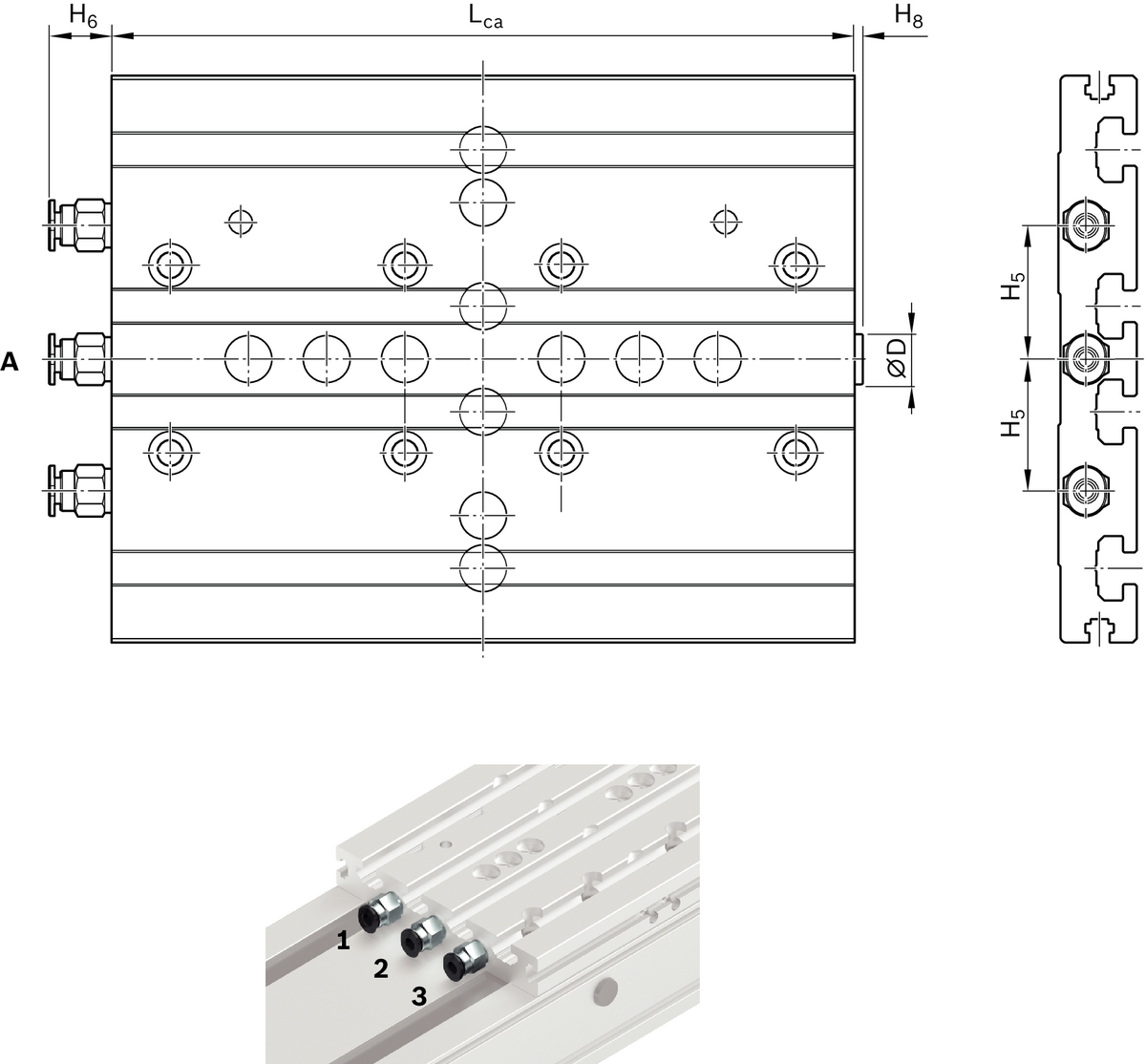

Connection plates for CKK 090 \u2026 200, R0375...10

Product Description

Fastening of attachments (with sliding blocks)Lubrication of the ball rail system and the ball screw assembly possible via the connection plate

Technical Specs

Характеристики изделия
Mechanical accessories for linear axes	Connection plates
Nominal size [mm]	90
Outer diameter D [mm]	8.5
Масса (кг)	0.37
Length of the carriage Lca [mm]	125
Lubrication type	LSS, LPG
Dimension A (profiled rail systems) [mm]	90
Dimension C [mm]	16
Dimension D [mm]	8.5
Dimension D1 [mm]	20
Dimension D2 [mm]	20
Dimension E H7 [mm]	9
Dimension E H7 thread depth [mm]	2.1
Dimension E H7 thread depth (text)	deep
Dimension E H7 with thread depth	9 mm ‒ 2.1 mm deep
Dimension E2 [mm]	10
Dimension E2 tolerance [mm]	±0.01
Dimension E3 (profiled rail systems) [mm]	20
Dimension E3 tolerance [mm]	±0.01
Dimension F H7 [mm]	4
Dimension F H7 thread depth [mm]	6
Dimension F H7 thread depth (text)	deep
Dimension F H7 with thread depth	4 mm ‒ 6 mm deep
Dimension F1 [mm]	38
Dimension F1 tolerance [mm]	±0.01
Dimension F2 [mm]	20
Dimension F2 tolerance [mm]	±0.01
Dimension G1 [mm]	7.6
Dimension G2 [mm]	4.2
Dimension G3 [mm]	7.3
Dimension G4 [mm]	2
Dimension G5 [mm]	4.3
Dimension H1 (profiled rail systems) [mm]	6
Dimension H3 [mm]	3.5
Dimension H4 [mm]	7.7
Dimension H5 [mm]	19
Dimension H6 [mm]	12.5
Dimension H8 [mm]	3
