Направляющая REXROTH R065825644

Name: Направляющая REXROTH R065825644
Brand: REXROTH
SKU: R065825644

Артикул:R065825644

Категория:Линейные направляющие рельсовые

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

eLINE LB, 40, with two seals, reduced, greased

Product Description

Linear bushing eLINE
Compact (C)
Shaft diameter d = 40
With two seals
Radial clearance: Reduced
Version: Standard
Greased

Initial lubrication with Dynalub 510Low-cost linear bushing for general requirementsReduced radial clearance for applications where minimal-clearance bearings with an H7 bore are desiredSmall outer dimensions and highly compact constructionLow-cost linear bushing for general requirementsSmall outer dimensions and highly compact constructionHigh dynamic load rating and long service life due to hardened segmental load-bearing plates with ball conformity in the running trackReduced radial clearance for applications where minimal-clearance bearings with an H7 bore are desiredInitial lubrication with Dynalub 510Simple mounting: Just press on – no additional retention neededHigh travel speed (5 m\/s)Integrated wiper seals, external seals or no wiper sealsIntegrated metal retainer about 0.1 mm larger than outer diameter (shaft diameters 12 to 50) for secure fit in housing boreMany pockets acting as lubricant reservoirs for extended lubrication intervals or lubrication for lifePockets collect any dirt that may have worked its way in to prevent the linear bushing from jamming.POM ball retainerBalls made of rolling bearing steel

Technical Specs

Характеристики

Характеристики изделия
Shaft diameter d [mm]	40
Version	Standard
Format of linear bushings	– Closed
Серия	Compact (eLINE)
Seal	2 integrated wiper seals
Lubrication	Greased
Maximum dynamic load capacity Cmax [N]	6380
Maximum acceleration rate amax [m/s²]	150
Maximum permissible linear speed vmax [m/s]	5
Радиальный зазор	reduced radial clearance
Length of linear bushing [mm]	60
Outer diameter D [mm]	52
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Масса (кг)	0.15
Footnote maximum dynamic load capacity Cmax	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote maximum static load capacity C0max	null
Footnote minimum dynamic load capacity Cmin	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote minimum static load capacity C0min	null
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	8
Тип	Linear bushing

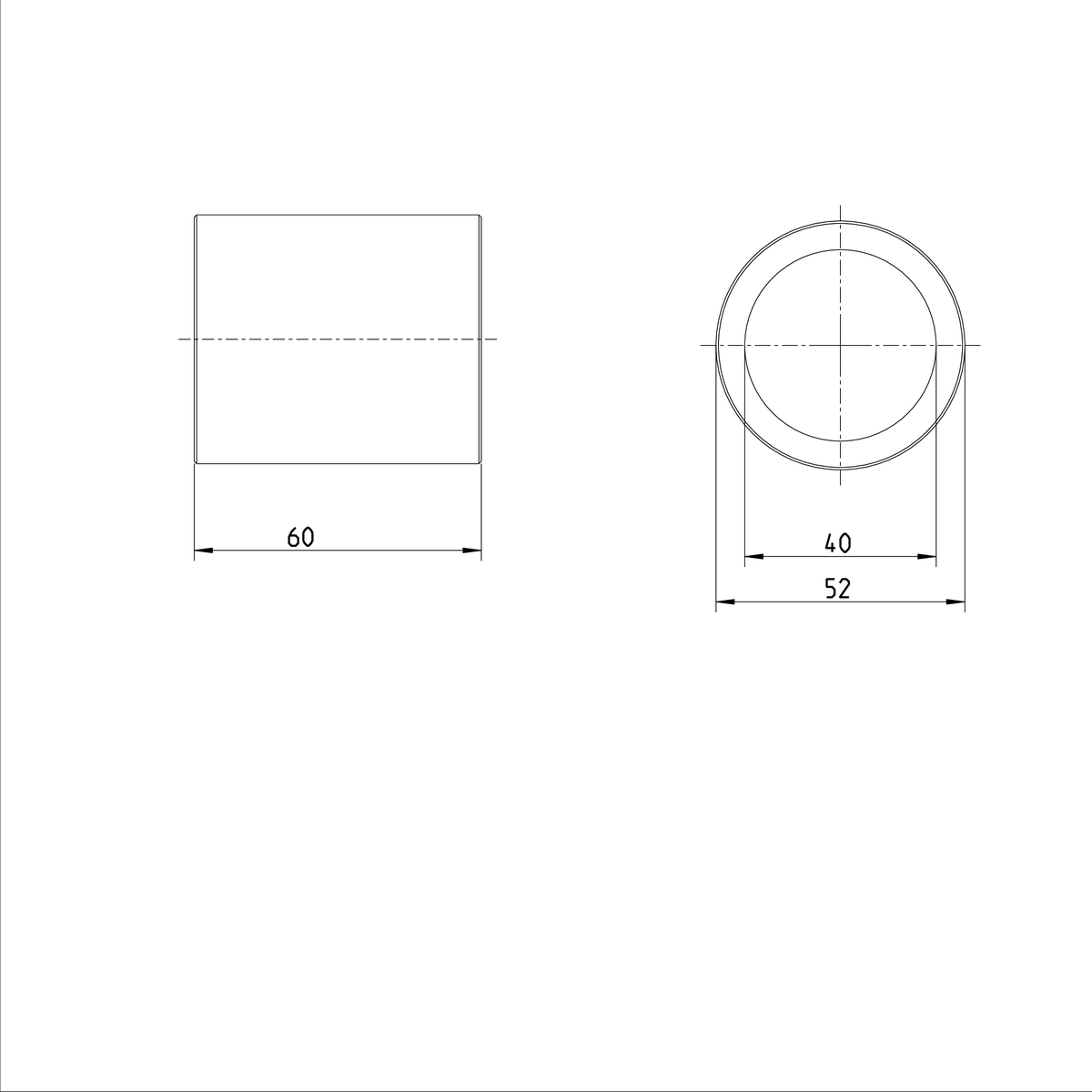

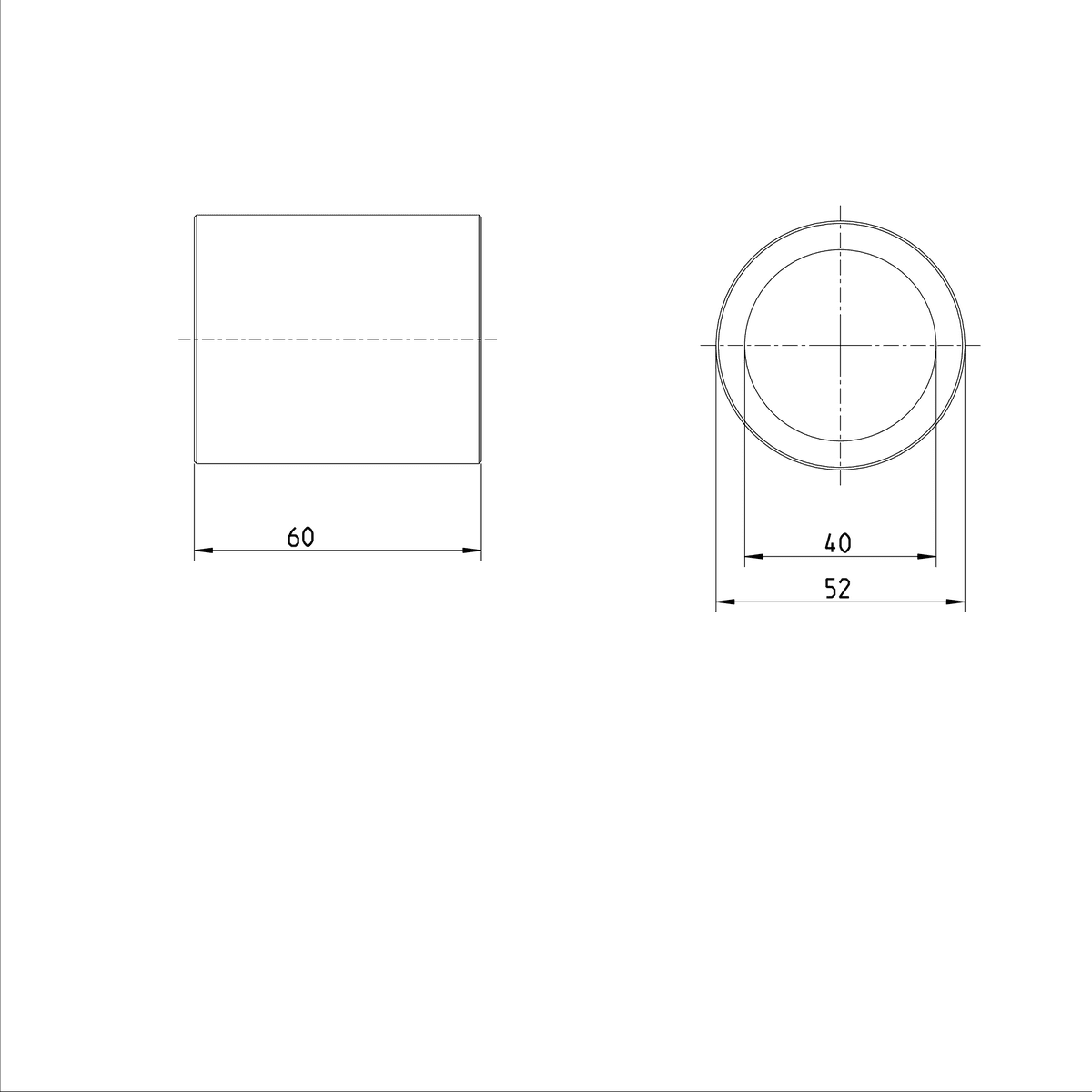

Dimension C [mm]	60
Dimension D [mm]	52
Dimension d [mm]	40
