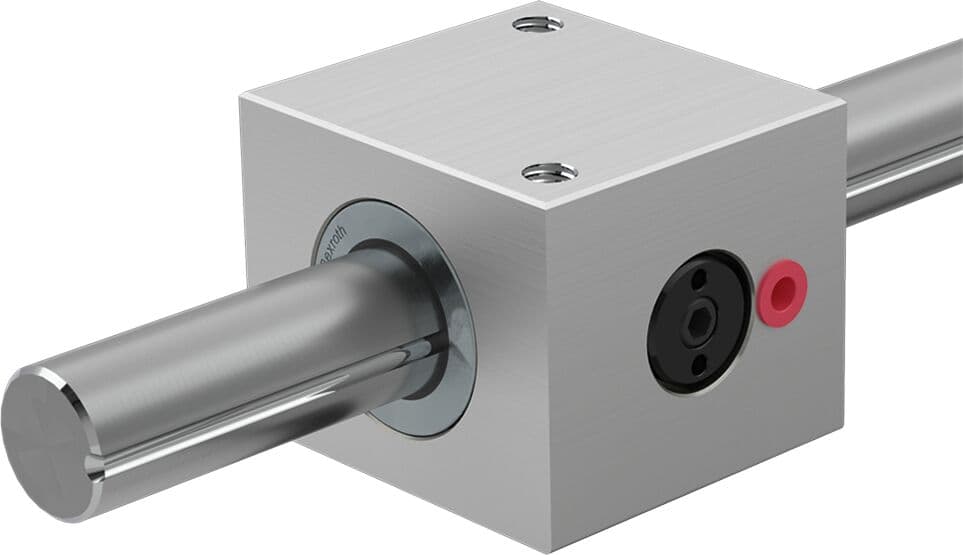

Линейный комплект Bosch Rexroth LSADR2-20-WV-K [R109852089]

Name: Линейный комплект Bosch Rexroth LSADR2-20-WV-K [R109852089]
Brand: REXROTH
SKU: R109852089
Availability: PreOrder

Артикул:R109852089

Категория:Линейные направляющие рельсовые

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Linear set (aluminum), DR2-20-WV-K, without seal

Product Description

Linear set (aluminum)
1 torque-resistant LB
Ball guide grooves = 2
Shaft diameter d = 20
Shaft included
L = shaft length to specification (cut)
Without seal
Version: Standard

Lightweight precision tandem housing (aluminum)Precision steel shaft with two ball guide groovestorque-resistant linear bushingTorque-transmitting, hardened steel bearing plates set to zero clearance ex worksStability against cocking loadsExternal sealsRelubricatable

Technical Specs

Характеристики

Характеристики изделия
Shaft diameter d [mm]	20
Серия	Torque
Dynamic load capacity C [N]	1550
Note: dynamic load capacity C	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150
Maximum permissible linear speed vmax [m/s]	3
Dynamic torsional moment load capacity Mt [Nm]	12
Outer diameter D [mm]	32
Mass m (kg/m) [kg/m]	2.45
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Масса (кг)	0
Static load capacity C0 [N]	1050
Note: static load capacity C0	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Тип	Linear set

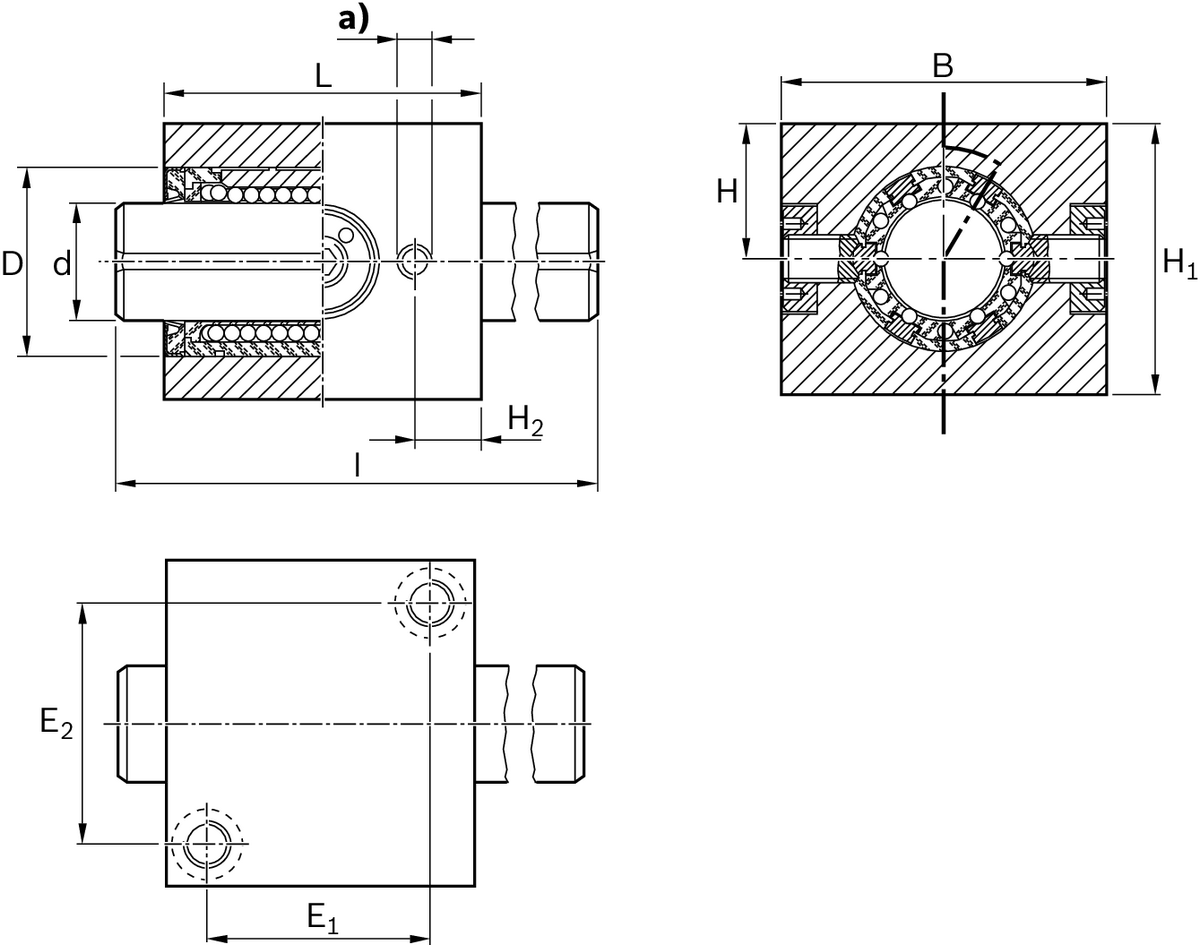

Dimension B (profiled rail systems) [mm]	60
Dimension D [mm]	32
Dimension E1 [mm]	39
Dimension E2 [mm]	44
Dimension H [mm]	25
Dimension H1 (profiled rail systems) [mm]	50
Dimension L	55
