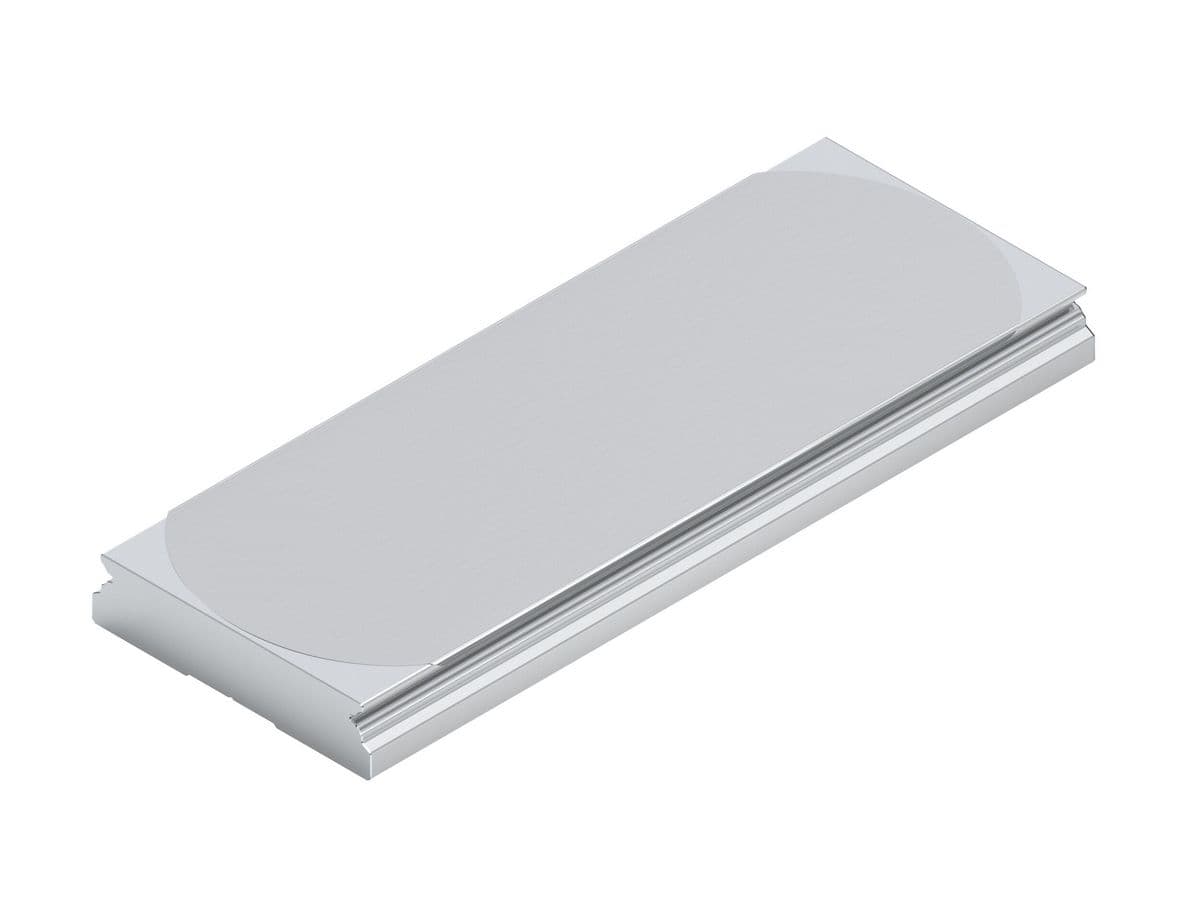

Направляющая REXROTH R045556431
Наличие и срок поставки подтверждаем по артикулу после запроса.
Позвонить и уточнить у менеджераОписание
Mini rail, BNS, size 15, Resist NRII, accuracy standard
Product Description
The miniature version of the ball guide rail is characterized by the following product features:
Size 15
Format BNS: Width = wide, length = normal, height = standard
Guide rail made of corrosion-resistant, martensitic steel
Fastener MA: Bolting from above
Cover AB: Cover strip
Accuracy class standard
Number of partial sections: one-piece
Rail in standard version
Technical Specs
Характеристики
| Характеристики изделия | |
| Version | Ball rail system |
| Nominal size [mm] | 15 |
| Format | BNS - wide guide rail |
| Material (profiled rail systems) | Corrosion-resistant, martensitic steel |
| Accuracy class | N - Normal |
| Guide rail mounting | For bolting from above |
| Guide rail cover | With cover strip |
| Max. length Lmax [mm] | 2000 |
| Note: Lmax | In the case of rail lengths above Lmax, factory-coordinated partial sections are put together. |
| Minimum length Lmin [mm] | 52 |
| Number of sections | 1-piece |
| Mass m (kg/m) [kg/m] | 2860 |
| Mass g/m [g/m] | 2860 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for a short time. |
| Масса (кг) | 0 |

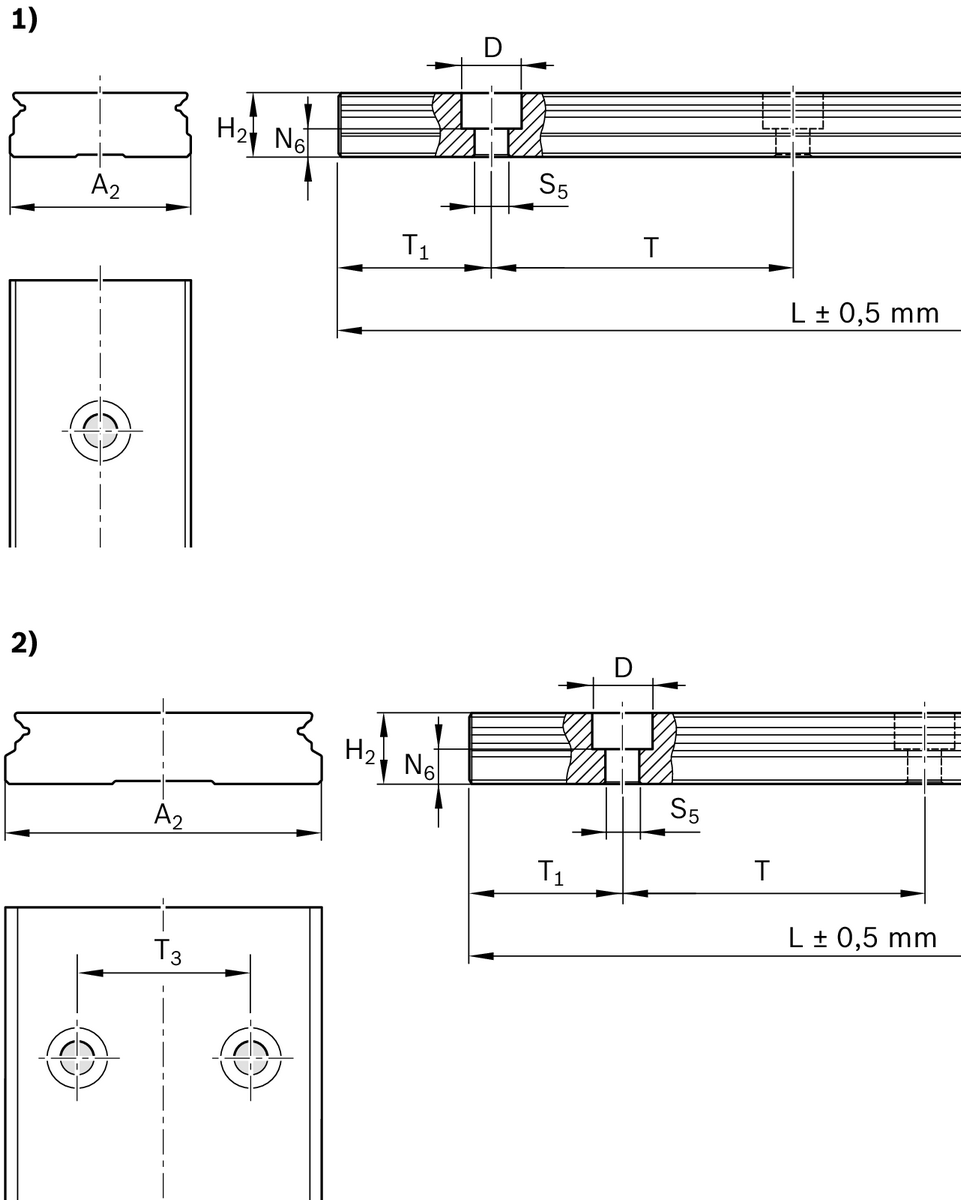

| Recommended rail length (formula) | L = nB • T ‒ 4 mm |
| Pitch T guide rail [mm] | 40 |
| Dimension A2 (profiled rail systems) [mm] | 42 |
| Dimension D [mm] | 8 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 9.6 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 9.5 |
| Dimension N6 (profiled rail systems) [mm] | 4.7 |
| Dimension S5 (profiled rail system) [mm] | 4.5 |
| Dimension T [mm] | 40 |
| Dimension T1 max (profiled rail systems) [mm] | 34.5 |
| Dimension T1 min [mm] | 6 |
| Dimension T3 (profiled rail systems) [mm] | 23 |
