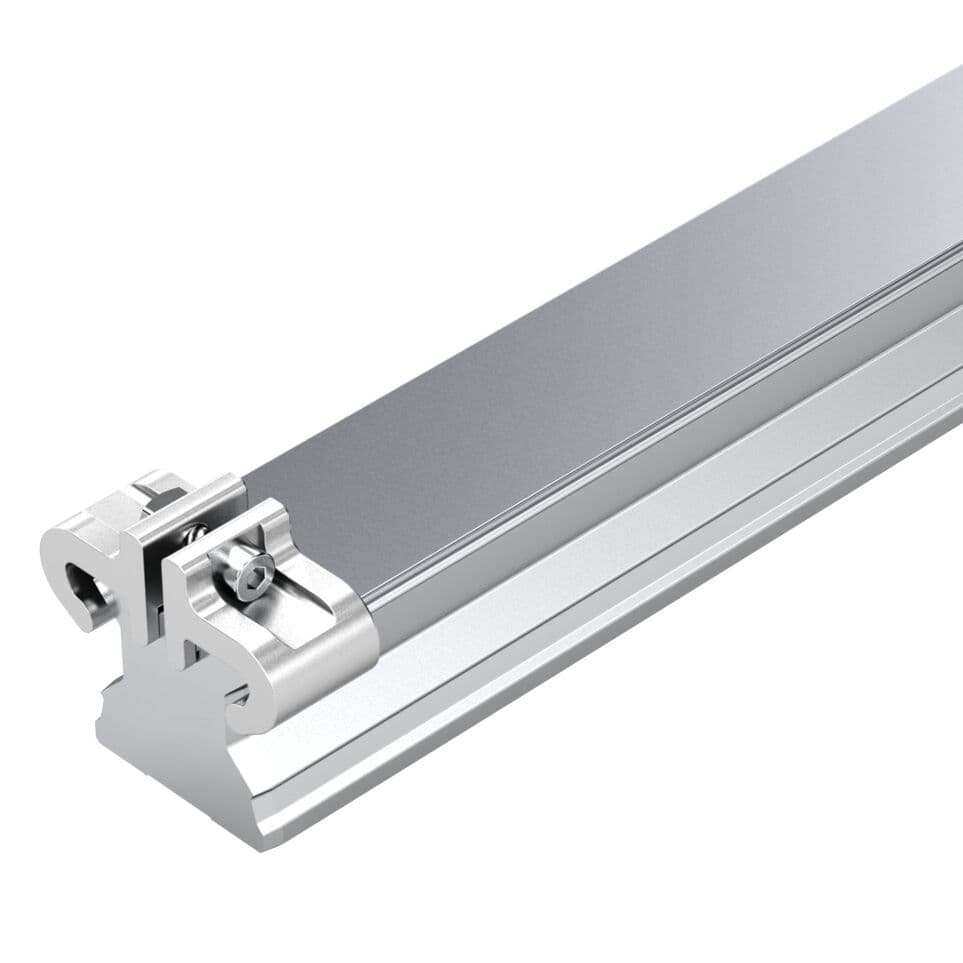

Роликовая направляющая из углеродистой стали Bosch Rexroth RSA-100-SNS-H-MA-SK [R183625331]

Name: Роликовая направляющая из углеродистой стали Bosch Rexroth RSA-100-SNS-H-MA-SK [R183625331]
Brand: REXROTH
SKU: R183625331
Availability: PreOrder

Артикул:R183625331

Категория:Линейные направляющие рельсовые

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Roller guide rail, SNS, size 100, steel CS, accuracy high

Product Description

The roller guide rail is highly precise and characterized by the following product features:
Size 100
Format SNS: Width = slimline, length = normal, height = standard
Guide rail made of carbon steel CS
Fastener MA: Bolting from above
Cover SK: Steel caps (must be ordered separately)
Accuracy class high
Number of partial sections: one-piece
Rail in standard version

For mounting from aboveHigh torque load capacityHardened raceways smoothened on all sidesMaximum rigidity in all load directions

Technical Specs

Характеристики

Характеристики изделия
Version	Roller rail systems
Nominal size [mm]	100
Format	SNS - Standard guide rail
Material (profiled rail systems)	Carbon steel
Accuracy class	H - Highly accurate
Guide rail mounting	For bolting from above
Guide rail cover	With steel caps
Max. length Lmax [mm]	3986
Minimum length Lmin [mm]	280
Number of holes nB (profiled rail systems)	35
Number of sections	1-piece
Mass m (kg/m) [kg/m]	42.5
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100°C admissible for short time. For operation at lower minus temperatures, please consult us.
Масса (кг)	0

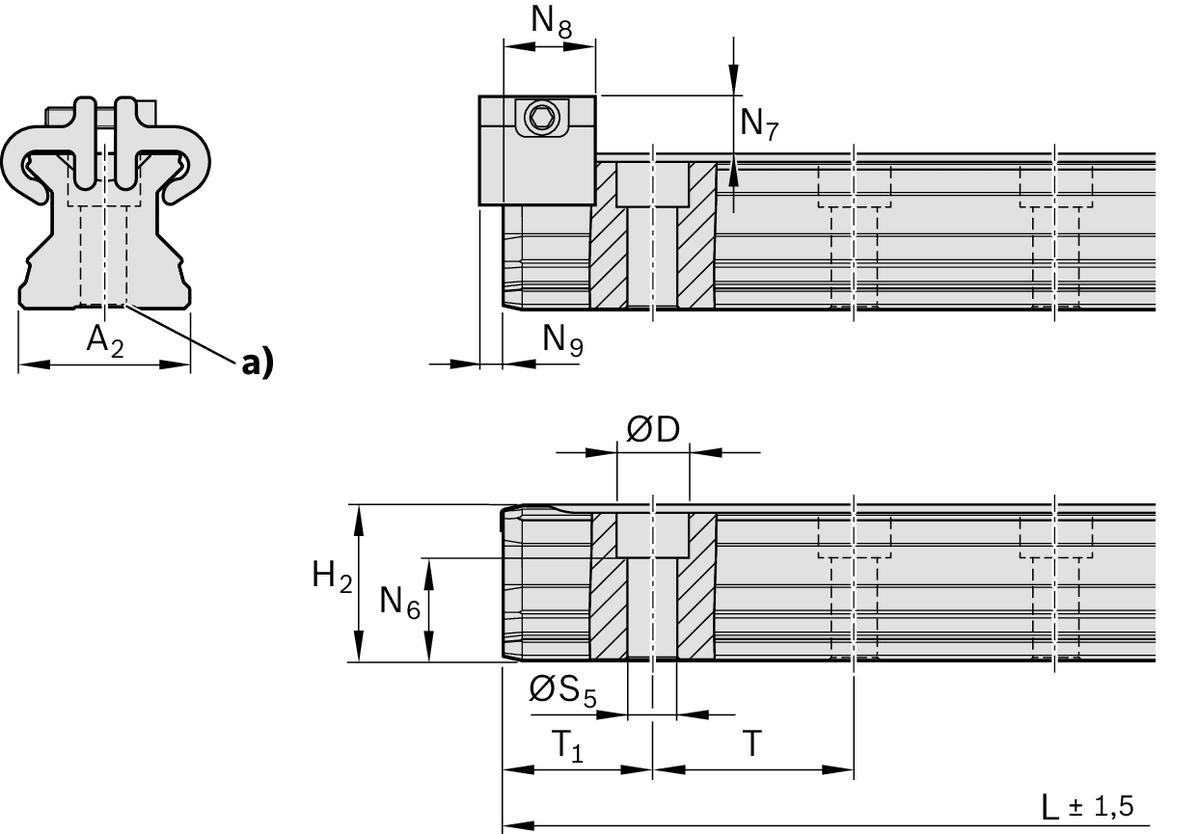

Recommended rail length (formula)	L = nB • T ‒ 7 mm
Pitch T guide rail [mm]	105
Dimension A2 (profiled rail systems) [mm]	100
Dimension D [mm]	40

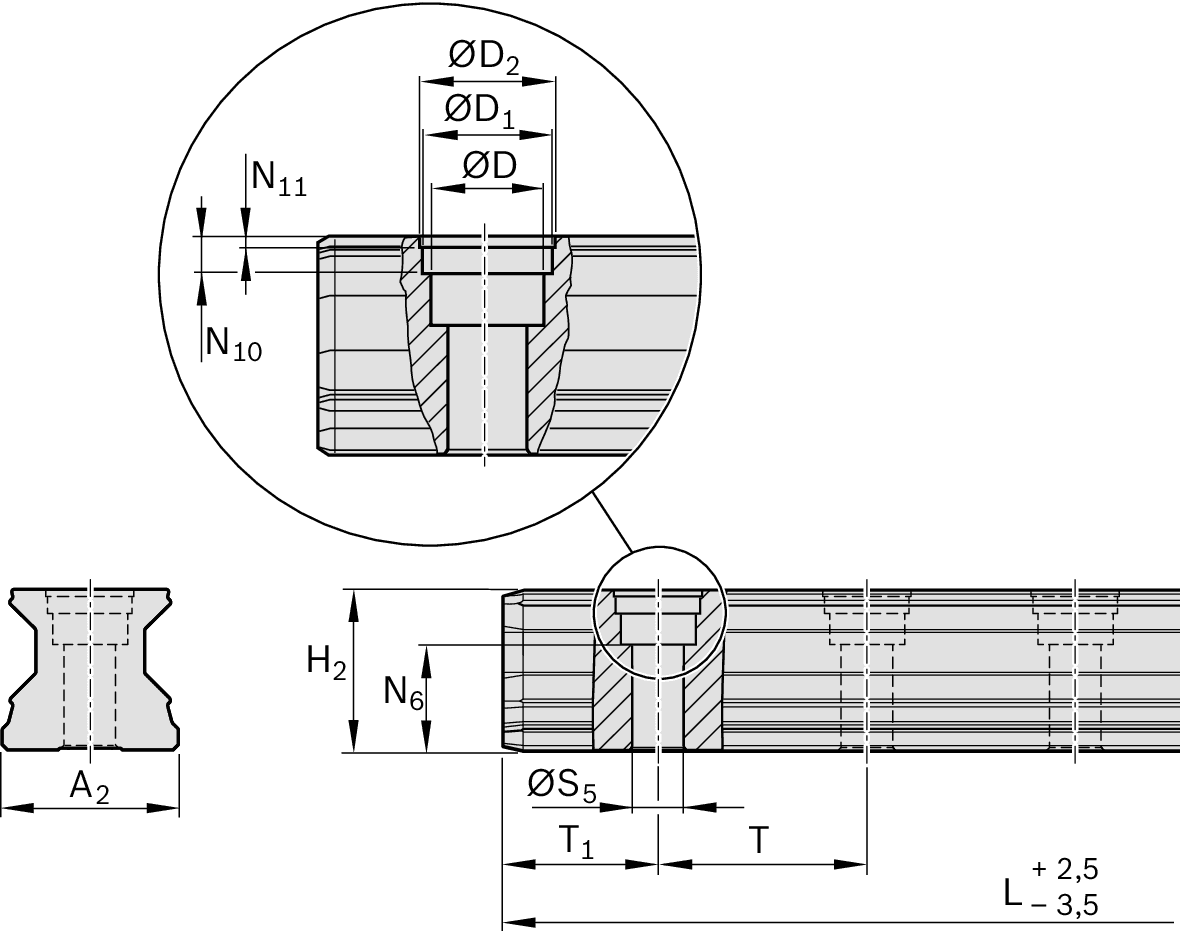

Dimension D1 [mm]	43.55
Dimension D2 [mm]	46
Dimension diameter S5 (profiled rail systems)	26
Dimension H2 without cover strip (profiled rail systems) [mm]	87
Dimension N10 (profiled rail systems) [mm]	9
Dimension N11 (profiled rail systems) [mm]	1.6
Dimension N6 (profiled rail systems) [mm]	55
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension T [mm]	105
Dimension T1 max (profiled rail systems) [mm]	70
Dimension T1 min [mm]	35
Dimension T1 s (profiled rail systems) [mm]	49
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T1S with tolerance +1/-1.5
