Направляющая REXROTH R066705000

Name: Направляющая REXROTH R066705000
Brand: REXROTH
SKU: R066705000

Артикул:R066705000

Категория:Линейные направляющие рельсовые

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Rotary motion LB, N-50, with two seals

Product Description

Rotary motion linear bushing
Needle bearing
Shaft diameter d = 50
With two seals

Linear bushing with needle bearingPrecise guiding at high load ratingHigh speed and low frictionFor linear applications with additional rotary motionFor grip and swivel functionsFor winding applicationsstandard linear bushing (closed)Steel intermediate ringsRetaining rings

Technical Specs

Характеристики

Характеристики изделия
Shaft diameter d [mm]	50
Version	Standard
Format of linear bushings	N - With needle bearing
Серия	Combined linear and rotary motion (rotation)
Seal	2 integrated wiper seals
Lubrication	Not lubricated
Dynamic load capacity C [N]	8260
Note: dynamic load capacity C	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	50
Maximum permissible linear speed vmax [m/s]	2
Length of linear bushing [mm]	100
Outer diameter D [mm]	92
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Масса (кг)	2.15
Footnote diameter d	Contrary to the illustration, these sizes have two needle bearings.
Static load capacity C0 [N]	6470
Note: static load capacity C0	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Retaining ring footnote	Seeger-Orbis GmbH
Тип	Linear bushing

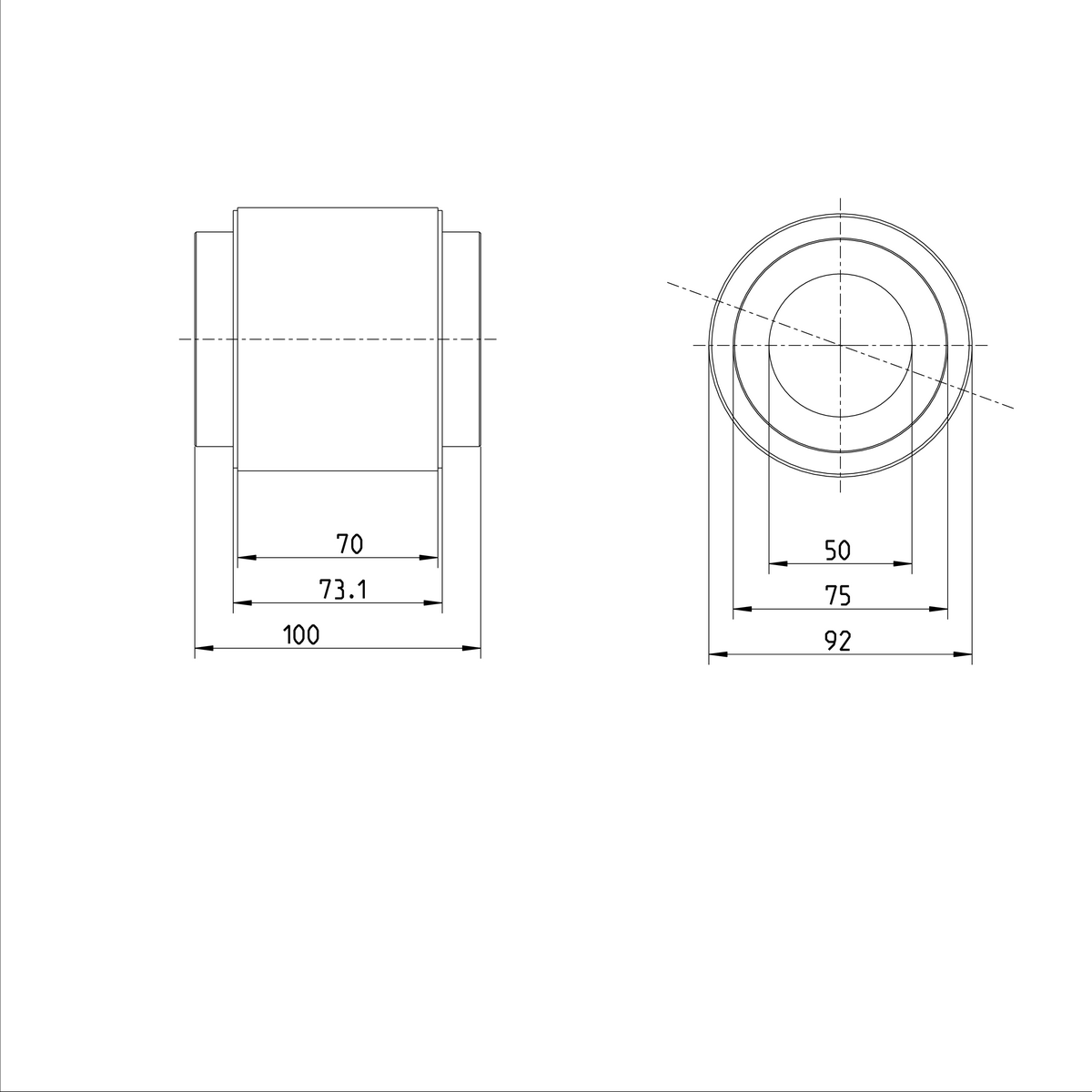

Dimension A (profiled rail systems) [mm]	73.1
Dimension B (profiled rail systems) [mm]	100
Dimension b [mm]	70
Dimension C3 H12 [mm]	78.3
Dimension C4 H13 [mm]	2.7
Dimension D [mm]	92
Dimension D1 [mm]	75
Dimension D2 [mm]	80.6
Dimension D3 [mm]	90
