Направляющая REXROTH R066326000

Name: Направляющая REXROTH R066326000
Brand: REXROTH
SKU: R066326000

Артикул:R066326000

Категория:Линейные направляющие рельсовые

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Rotary motion LB, R-60, with two seals

Product Description

Rotary motion linear bushing
With deep-groove ball bearing
Shaft diameter d = 60
With two seals

Linear bushings with deep-groove ball bearingPrecise guiding at high load ratingHigh speed and low frictionFor linear applications with additional rotary motionFor grip and swivel functionsFor winding applicationsMaintenance-free sealed shieldssegmental linear bushings (for shaft diameters 12 to 40).Steel sleeve (for shaft diameters 12 to 40).External seals (for shaft diameters 12 to 40)Pressed-on deep-groove ball bearingstandard linear bushing (for shaft diameters 5, 8, 50, 60 and 80)Integrated wiper seals (for shaft diameters 5, 8, 50, 60 and 80)

Technical Specs

Характеристики

Характеристики изделия
Shaft diameter d [mm]	60
Version	Standard
Format of linear bushings	R - With deep-groove ball bearing (series 618)
Серия	Combined linear and rotary motion (rotation)
Seal	2 integrated wiper seals
Lubrication	Not lubricated
Dynamic load capacity C [N]	11500
Note: dynamic load capacity C	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	50
Maximum permissible linear speed vmax [m/s]	2
Length of linear bushing [mm]	125
Outer diameter D [mm]	115
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Масса (кг)	2.35
Static load capacity C0 [N]	9160
Note: static load capacity C0	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Тип	Linear bushing

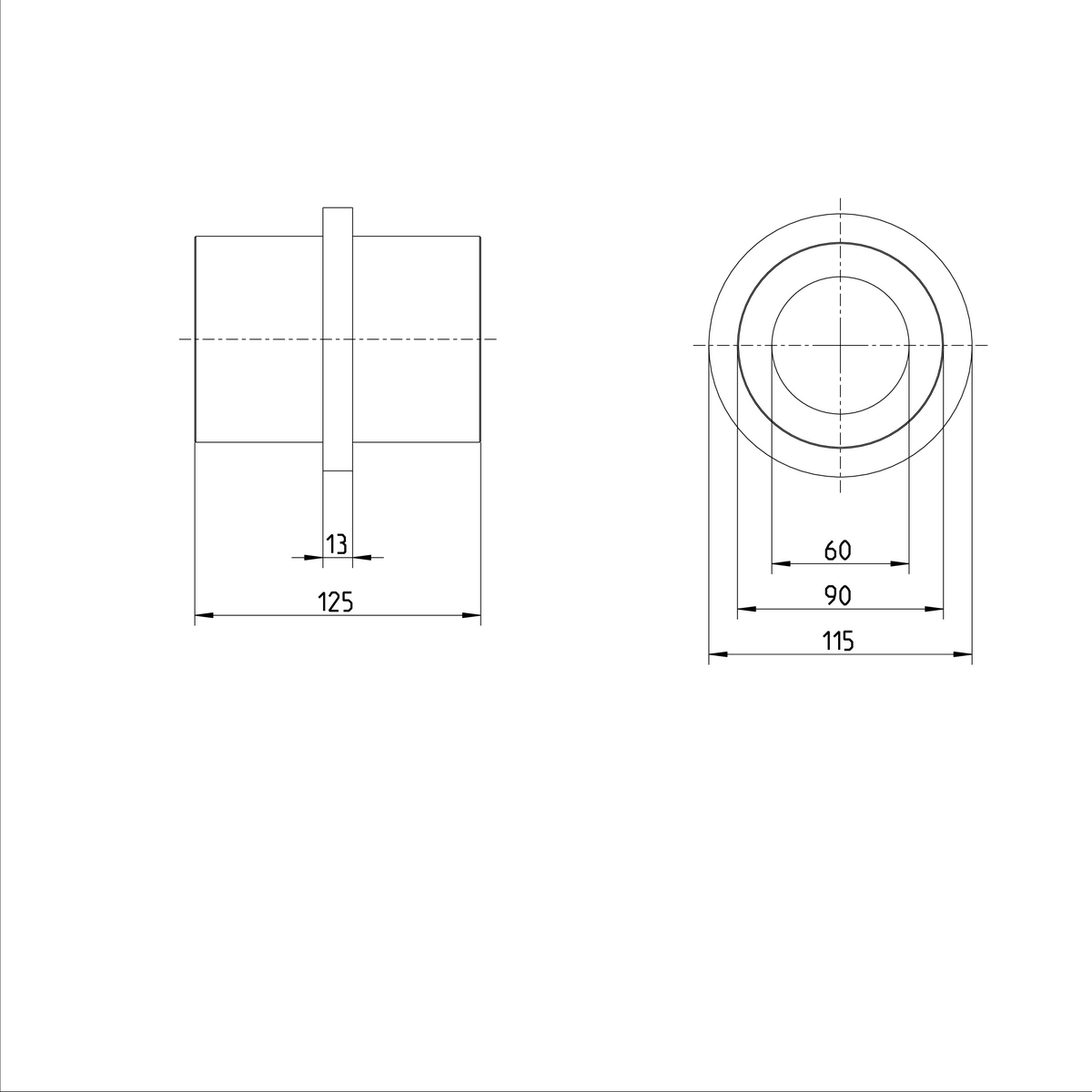

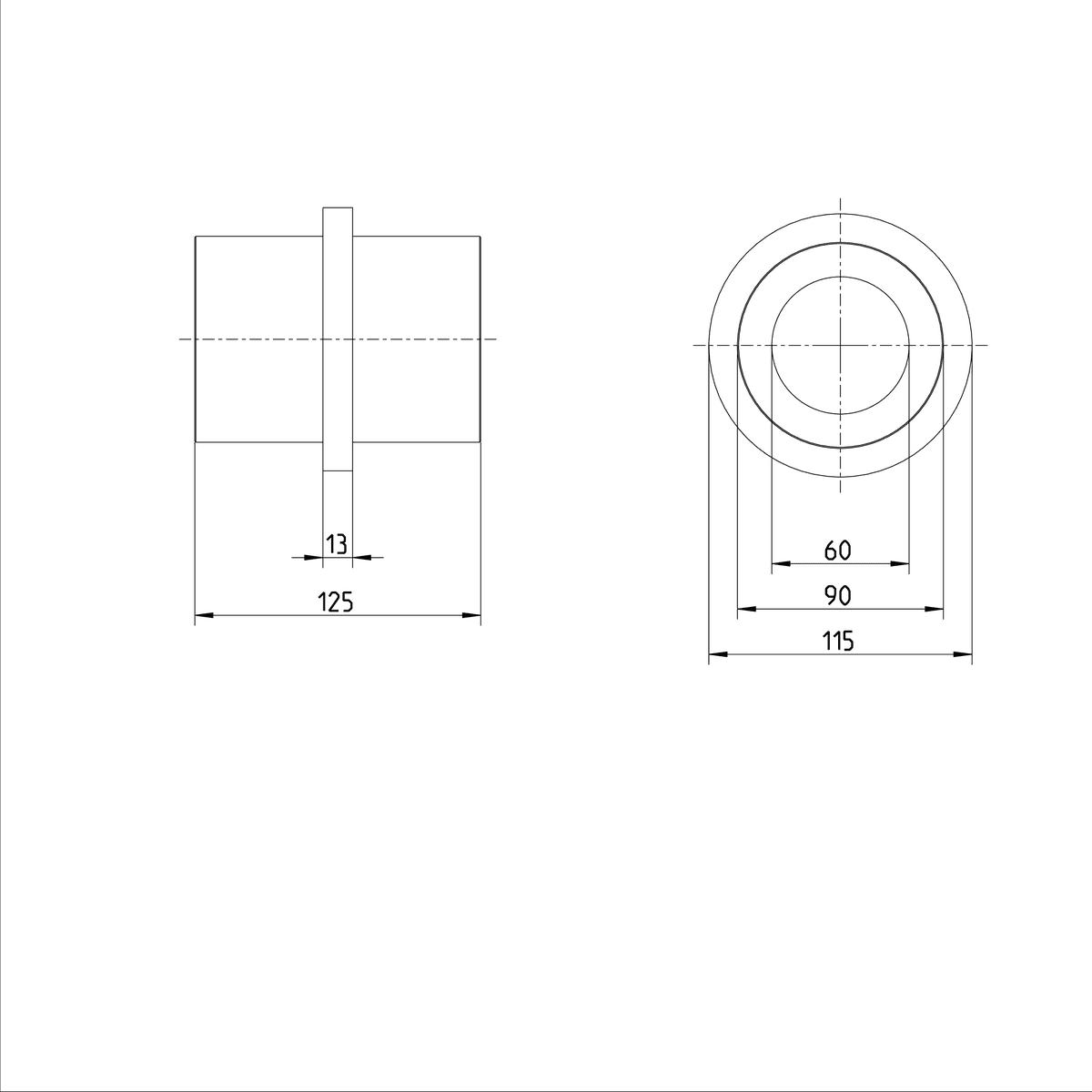

Dimension A (profiled rail systems) [mm]	13
Dimension B (profiled rail systems) [mm]	125
Dimension D [mm]	115
Dimension D1 [mm]	90
