Вращающаяся линейная втулка с радиальным шарикоподшипником Bosch Rexroth KBRORD-12-DD [R066421200]

Name: Вращающаяся линейная втулка с радиальным шарикоподшипником Bosch Rexroth KBRORD-12-DD [R066421200]
Brand: REXROTH
SKU: R066421200
Availability: PreOrder

Артикул:R066421200

Категория:Линейные направляющие рельсовые

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Rotary motion LB, RD-12, with two seals

Product Description

Rotary motion linear bushing
With deep-groove ball bearing, shields
Shaft diameter d = 12
With two seals

Linear bushings with deep-groove ball bearingPrecise guiding at high load ratingHigh speed and low frictionFor linear applications with additional rotary motionFor grip and swivel functionsFor winding applicationsMaintenance-free sealed shieldsPre-lubricatedPressed-on deep-groove ball bearingsegmental linear bushings (for shaft diameters 12 to 40).Steel sleeve (for shaft diameters 12 to 40).External seals (for shaft diameters 12 to 40)standard linear bushing (for shaft diameters 5, 8, 50, 60 and 80)Integrated wiper seals (for shaft diameters 5, 8, 50, 60 and 80)

Technical Specs

Характеристики

Характеристики изделия
Shaft diameter d [mm]	12
Version	Standard
Format of linear bushings	RD - With deep-groove ball bearing, shields (series 60)
Серия	Combined linear and rotary motion (rotation)
Seal	2 integrated wiper seals
Lubrication	Not lubricated
Dynamic load capacity C [N]	480
Note: dynamic load capacity C	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150
Maximum permissible linear speed vmax [m/s]	3
Length of linear bushing [mm]	30
Outer diameter D [mm]	47
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Масса (кг)	0.15
Static load capacity C0 [N]	420
Note: static load capacity C0	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Тип	Linear bushing

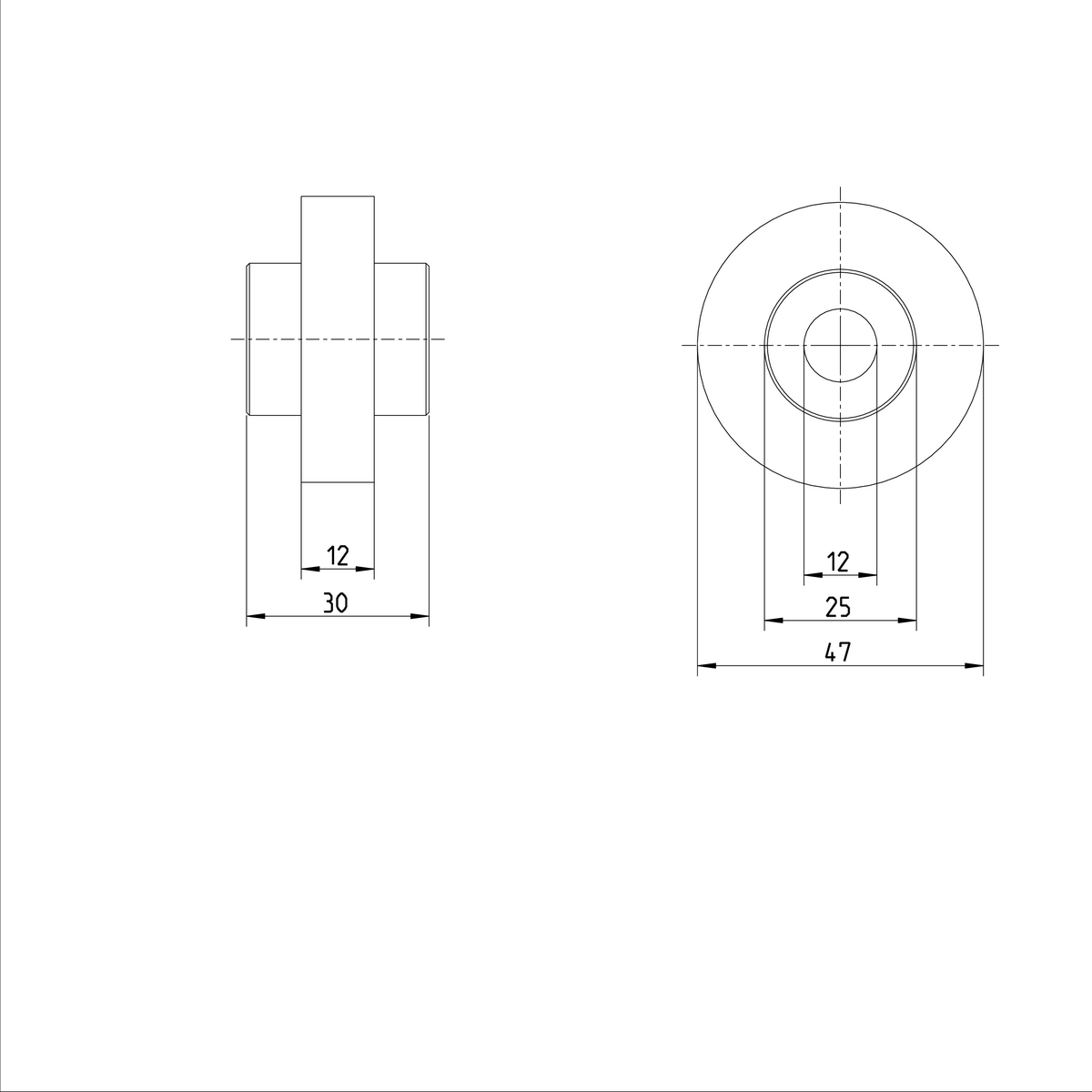

Dimension A (profiled rail systems) [mm]	12
Dimension B (profiled rail systems) [mm]	30
Dimension D [mm]	47
Dimension D1 [mm]	25
