Направляющая REXROTH R066802030

Name: Направляющая REXROTH R066802030
Brand: REXROTH
SKU: R066802030

Артикул:R066802030

Категория:Линейные направляющие рельсовые

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

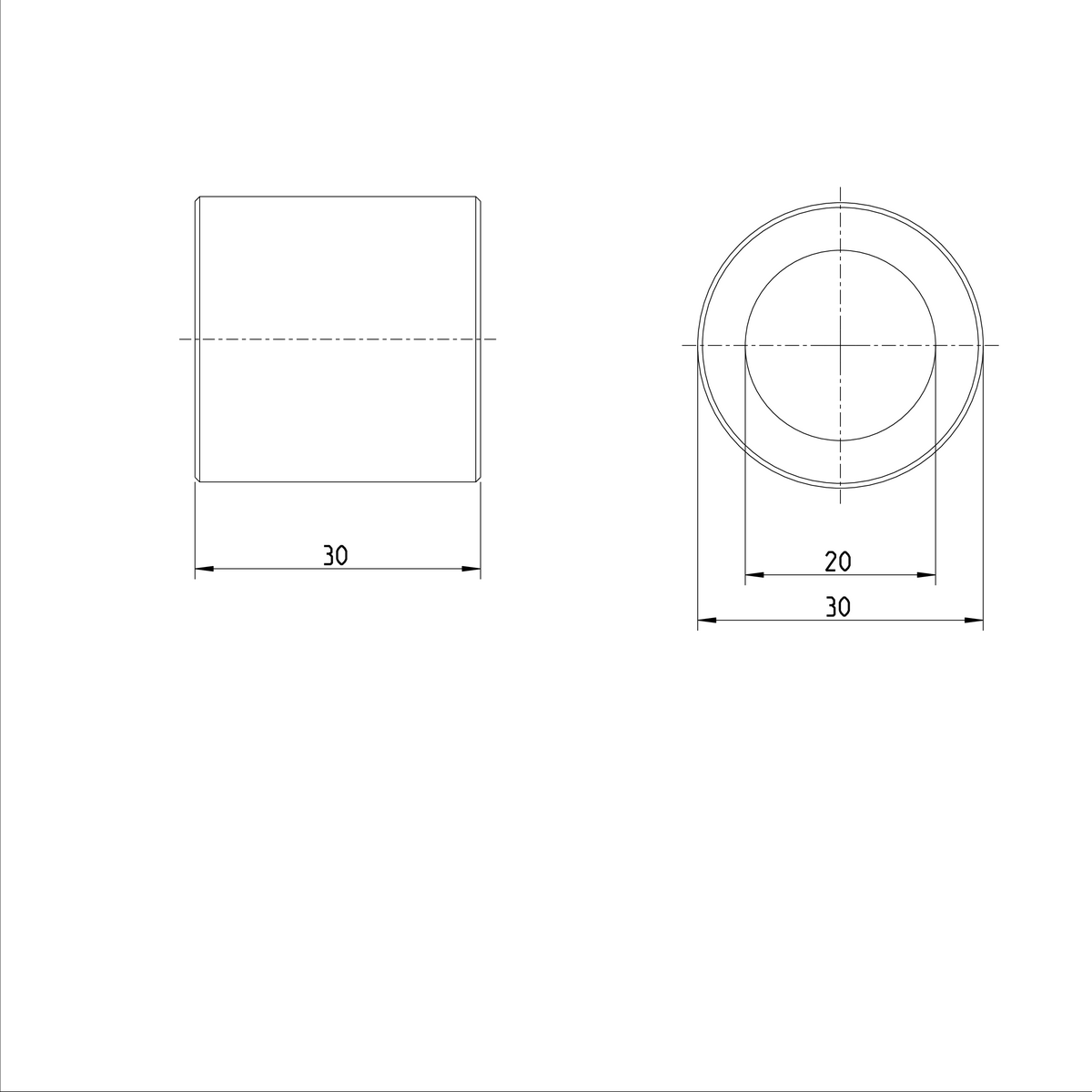

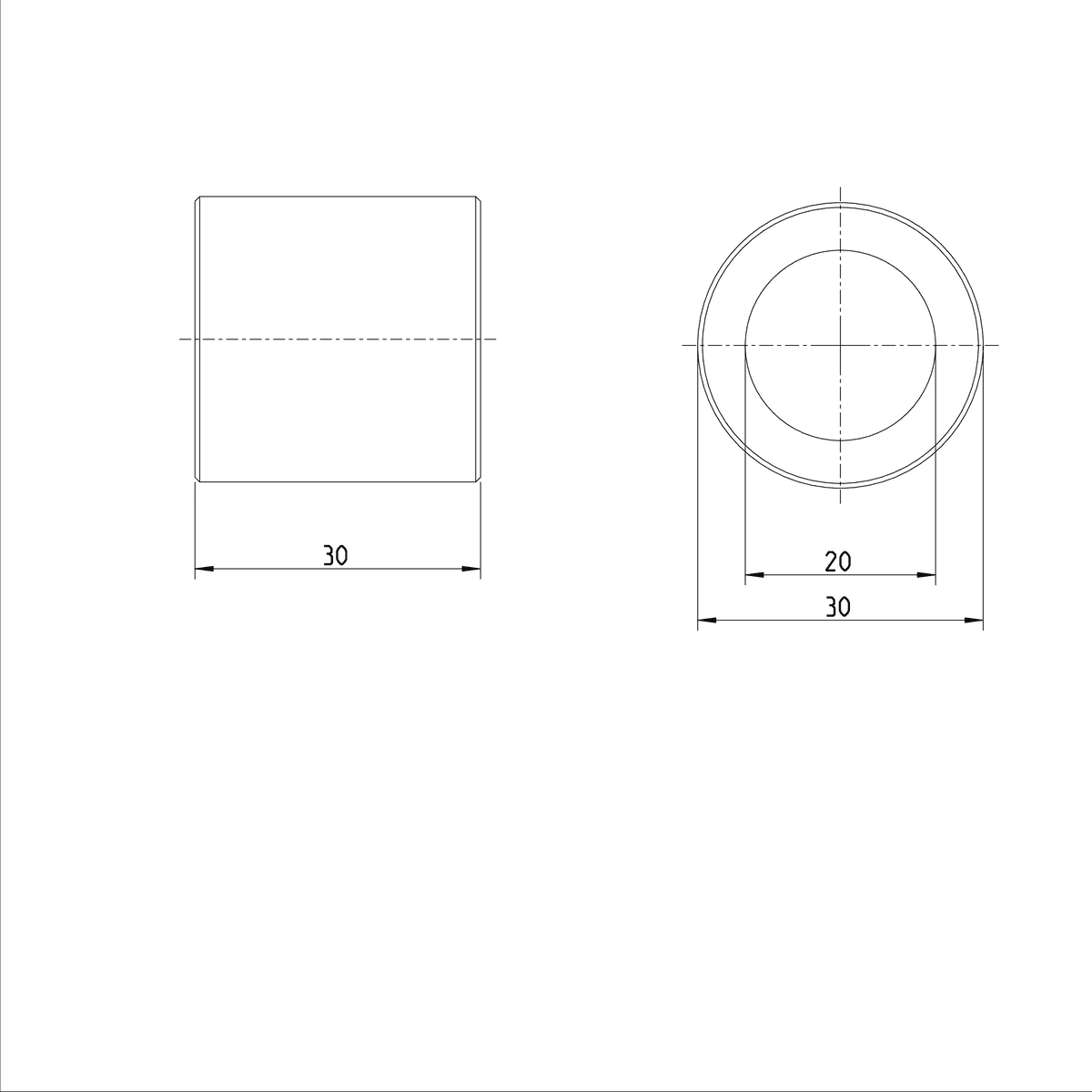

Segmental LB, closed, 20, without seal, corrosion-resistant

Product Description

Segmental linear bushing
Closed
Shaft diameter d = 20
Without seal
Version: Corrosion-resistant

Designed especially for general requirementsStainless steel for the medical, chemistry and food industriesSeparate wiper seals optionalSegmental load bearing plates made of 1.4300 steelBalls made of 1.3541 steelBall retainer and retaining rings made of PA 11

Technical Specs

Характеристики

Характеристики изделия
Shaft diameter d [mm]	20
Version	Corrosion-resistant
Format of linear bushings	– Closed
Серия	Segment
Seal	without wiper seals
Lubrication	Not lubricated
Maximum dynamic load capacity Cmax [N]	540
Maximum acceleration rate amax [m/s²]	150
Maximum permissible linear speed vmax [m/s]	3
Length of linear bushing [mm]	30
Outer diameter D [mm]	30
Permissible ambient temperature (min. ... max.)	-10 °C ... +65 °C
Friction coefficient μ	0.001 ... 0.004
Note: friction coefficient μ	Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.
Масса (кг)	0.04
Footnote maximum dynamic load capacity Cmax	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote maximum static load capacity C0max	null
Footnote minimum dynamic load capacity Cmin	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote minimum static load capacity C0min	null
Footnote friction force FR	Frictional drags generated by linear bushings with seals on both ends when not under radial load. This depends on speed and lubrication.
Breakaway force [N]	5
Тип	Linear bushing
Dimension C js14 [mm]	30
Dimension D [mm]	30
