Линейная втулка устойчивая к крутящему моменту Bosch Rexroth KBDR2-25-WV-500 [R069632580]

Name: Линейная втулка устойчивая к крутящему моменту Bosch Rexroth KBDR2-25-WV-500 [R069632580]
Brand: REXROTH
SKU: R069632580
Availability: PreOrder

Артикул:R069632580

Категория:Линейные направляющие рельсовые

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Torque-resistant LB, 2-25-WV-500, without seal

Product Description

Torque-resistant linear bushing (standard)
Ball guide grooves = 2
Shaft diameter d = 25
Without seal
Shaft included
500 = standard length as per table

For self-supporting, torsionally stiff guides with only one shaftTorque-resistant linear bushings with adjusting screw come set to zero clearanceShafts machined to customer specificationPrecision steel shaft with two ball guide grooves for transferring torqueBall retainer and outer sleeve made of PA or POMHardened steel bearing platesBalls made of rolling bearing steelHardened steel adjusting screwSteel lock nut

Technical Specs

Характеристики

Характеристики изделия
Shaft diameter d [mm]	25
Version	Standard
Format of linear bushings	– Closed
Серия	Torque
Seal	without wiper seals
Raceway grooves	2
Dynamic load capacity C [N]	3030
Note: dynamic load capacity C	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150
Maximum permissible linear speed vmax [m/s]	3
Dynamic torsional moment load capacity Mt [Nm]	24
Length of linear bushing [mm]	58
Outer diameter D [mm]	40
Mass m (kg/m) [kg/m]	3.8
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Масса (кг)	2.35
Static load capacity C0 [N]	2180
Note: static load capacity C0	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Тип	Linear bushing

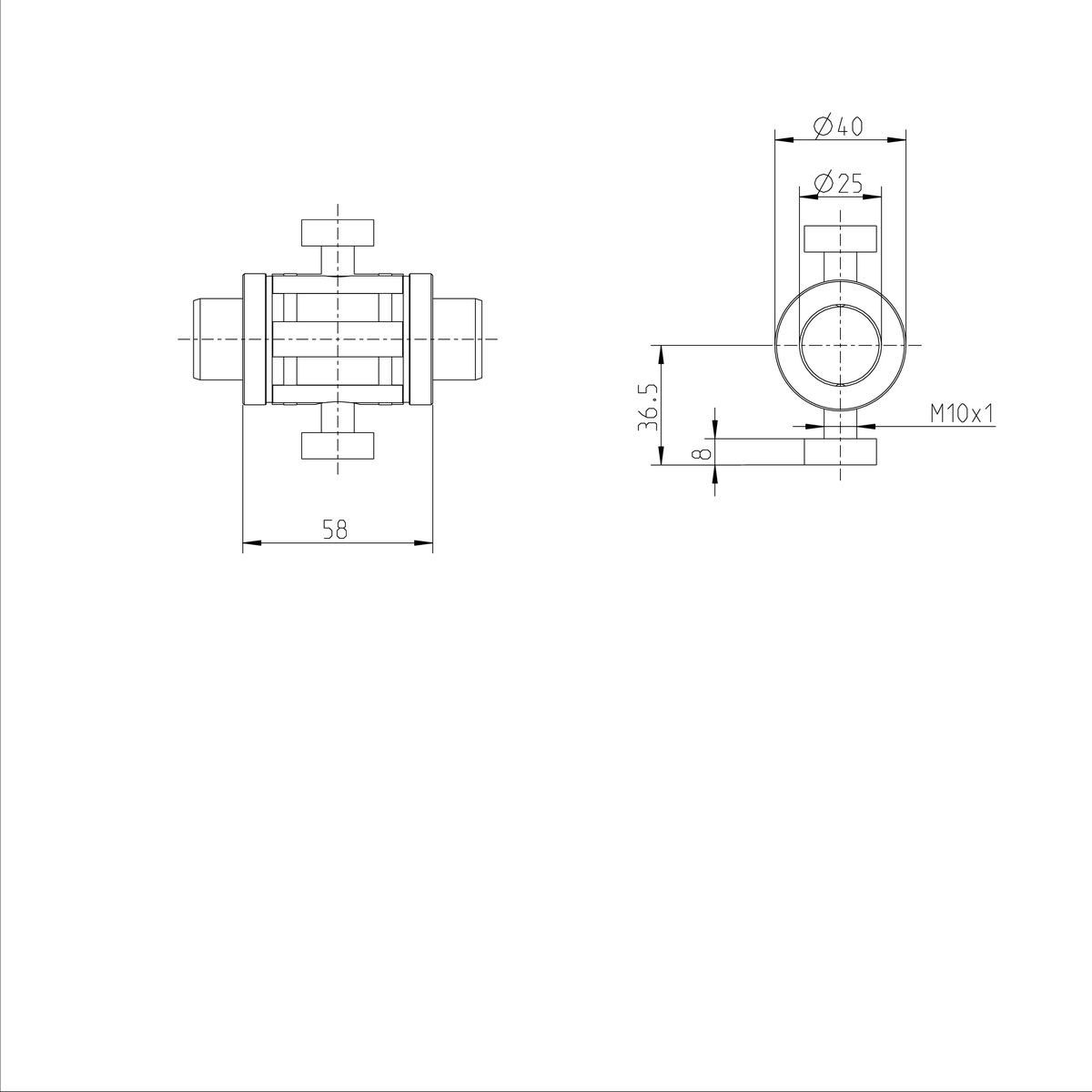

Dimension B (profiled rail systems) [mm]	58
Dimension D [mm]	40
Dimension M1 [mm]	22
Dimension N1 (profiled rail systems) [mm]	28.5
Dimension N2 (profiled rail systems) [mm]	8
Standard length l of the shaft footnote [mm]	R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm
Standard length l of the shaft [mm]	500
