Линейная втулка устойчивая к крутящему моменту Bosch Rexroth KBDR4-F-16DD [R072521600]

Name: Линейная втулка устойчивая к крутящему моменту Bosch Rexroth KBDR4-F-16DD [R072521600]
Brand: REXROTH
SKU: R072521600
Availability: PreOrder

Артикул:R072521600

Категория:Линейные направляющие рельсовые

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Torque-resistant LB, 4-F-16, with two seals

Product Description

Torque-resistant linear bushing (flanged version)
Ball guide grooves = 4
Shaft diameter d = 16
With two seals
Without shaft

For self-supporting, torsionally stiff guides with only one shaftWith four ball guide grooves for transferring torqueMatching shaft profiles with machined ball guide groovesShafts machined to customer specificationIntegrated wiper sealsHardened and ground outer sleevePOM ball retainerBalls made of rolling bearing steelRelubricatable

Technical Specs

Характеристики

Характеристики изделия
Shaft diameter d [mm]	16
Version	Standard
Format of linear bushings	F - Flange
Серия	Torque
Seal	2 integrated wiper seals
Raceway grooves	4
Lubrication	Not lubricated
Dynamic load capacity C [N]	4860
Note: dynamic load capacity C	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150
Maximum permissible linear speed vmax [m/s]	3
Dynamic torsional moment load capacity Mt [Nm]	48
Length of linear bushing [mm]	50
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Масса (кг)	0.23
Footnote diameter d	Actual shaft diameter varies
Static load capacity C0 [N]	11200
Note: static load capacity C0	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Static torsional moment load capacity Mt0 [Nm]	110
Тип	Linear bushing
Shaft diameter, detailed [mm]	16

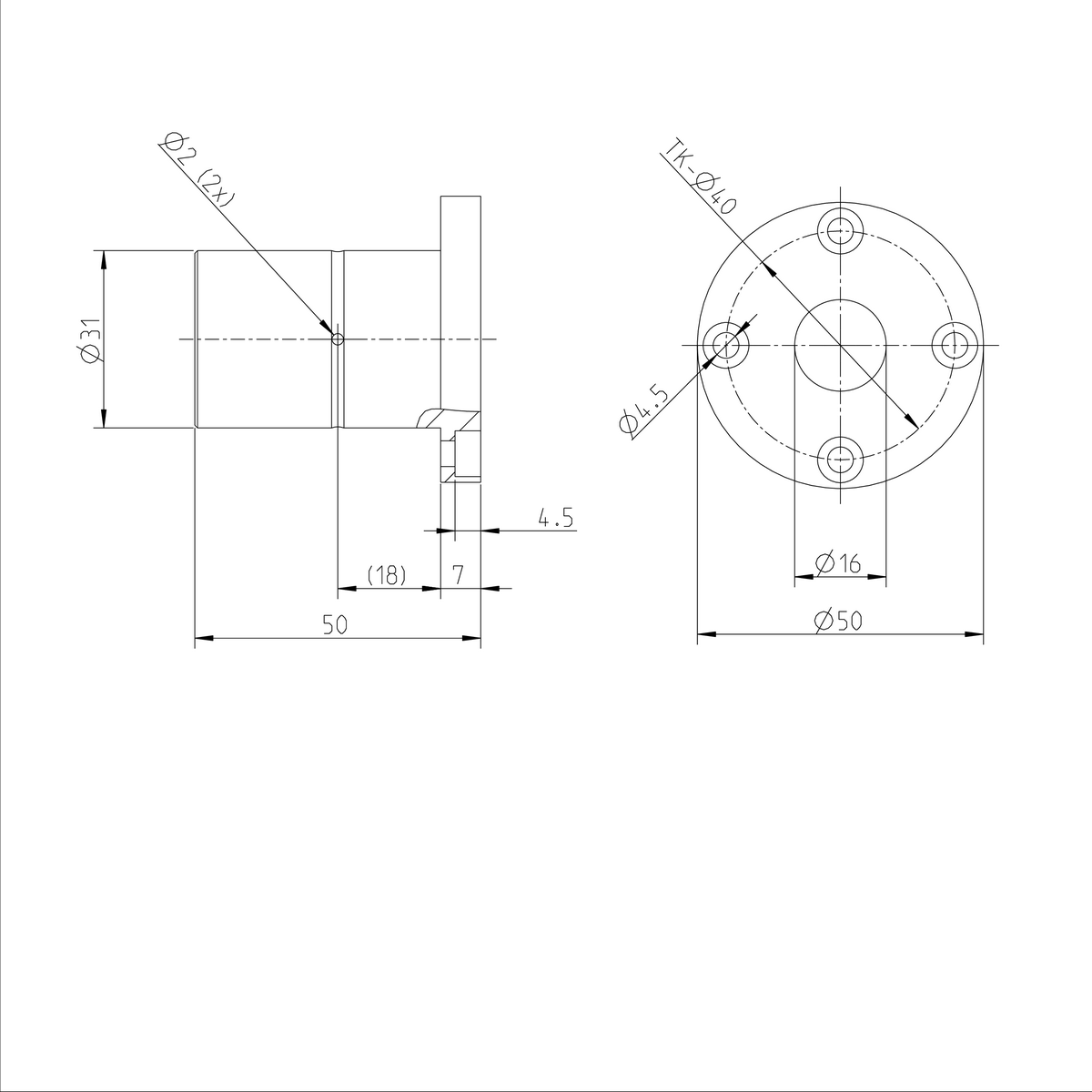

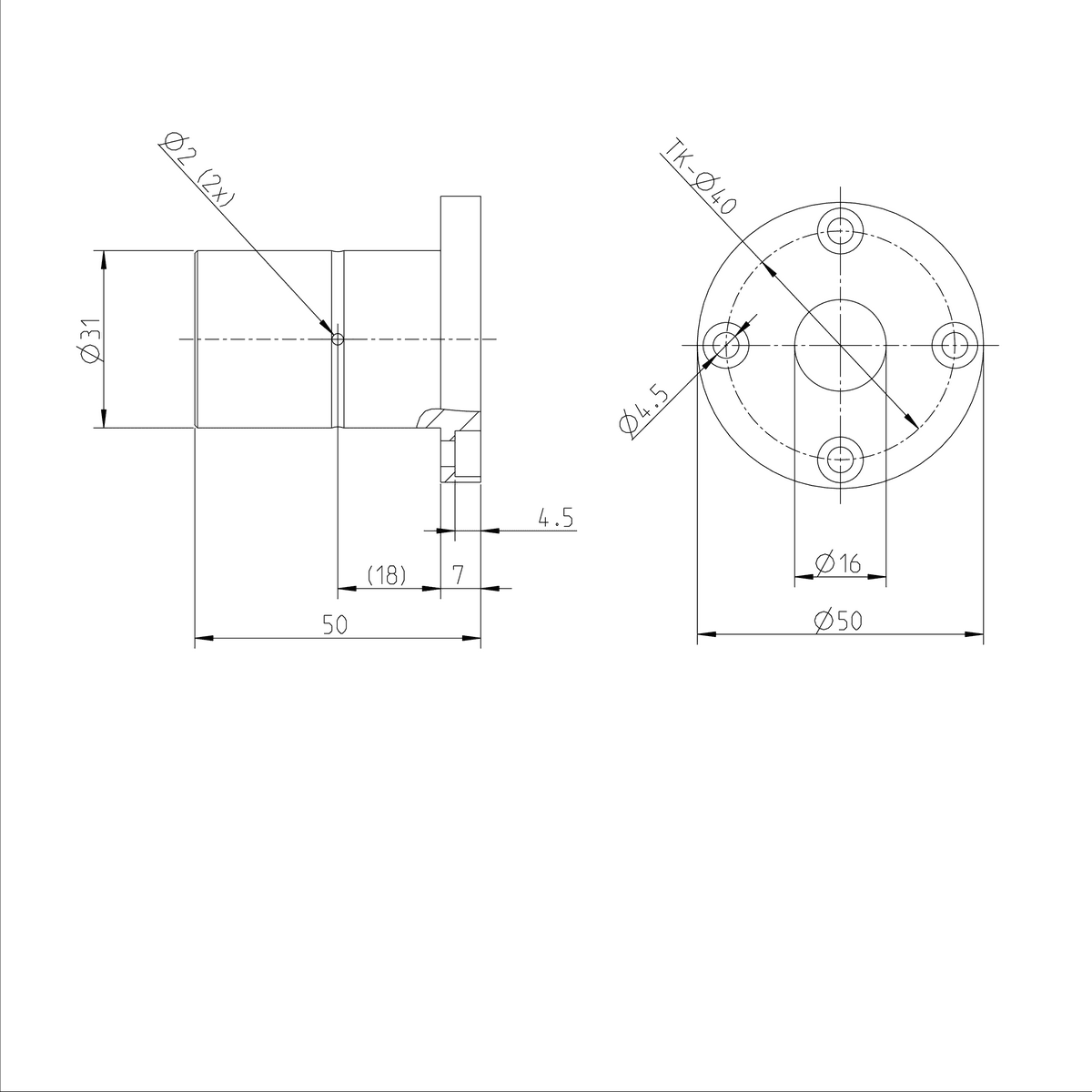

Dimension D [mm]	31
Dimension D1 [mm]	50
Dimension D h6 [mm]	31
Dimension D2 [mm]	40
Dimension L	50
Dimension L tolerance [mm]	-0.2
Dimension L1	7
Dimension L2 [mm]	18
Dimension S [mm]	4.5
Dimension V [mm]	4.4
