Направляющая REXROTH R072422000

Name: Направляющая REXROTH R072422000
Brand: REXROTH
SKU: R072422000

Артикул:R072422000

Категория:Линейные направляющие рельсовые

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Torque-resistant LB, 4-H-20, with two seals

Product Description

Torque-resistant linear bushing (cylindrical, sleeve design)
Ball guide grooves = 4
Shaft diameter d = 20
With two seals
Without shaft

For self-supporting, torsionally stiff guides with only one shaftWith four ball guide grooves for transferring torqueMatching shaft profiles with machined ball guide groovesShafts machined to customer specificationIntegrated wiper sealsHardened and ground outer sleevePOM ball retainerBalls made of rolling bearing steelFitting key for torque transmissionRelubricatable

Technical Specs

Характеристики

Характеристики изделия
Shaft diameter d [mm]	20
Version	Standard
Format of linear bushings	H - Sleeve design
Серия	Torque
Seal	2 integrated wiper seals
Raceway grooves	4
Lubrication	Not lubricated
Dynamic load capacity C [N]	6200
Note: dynamic load capacity C	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150
Maximum permissible linear speed vmax [m/s]	3
Dynamic torsional moment load capacity Mt [Nm]	66
Length of linear bushing [mm]	60
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Масса (кг)	0.19
Footnote diameter d	Actual shaft diameter varies
Static load capacity C0 [N]	11300
Note: static load capacity C0	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Static torsional moment load capacity Mt0 [Nm]	133
Тип	Linear bushing

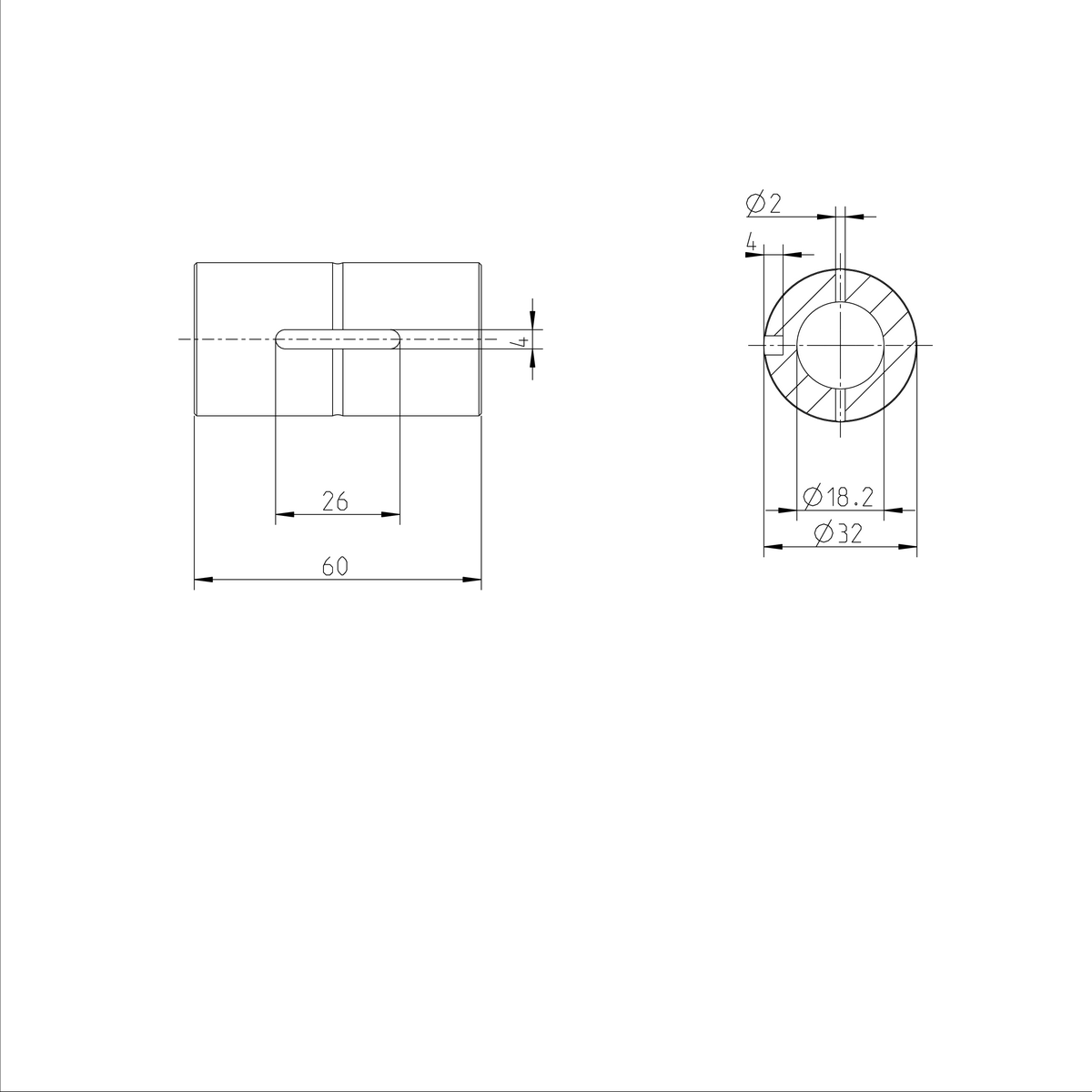

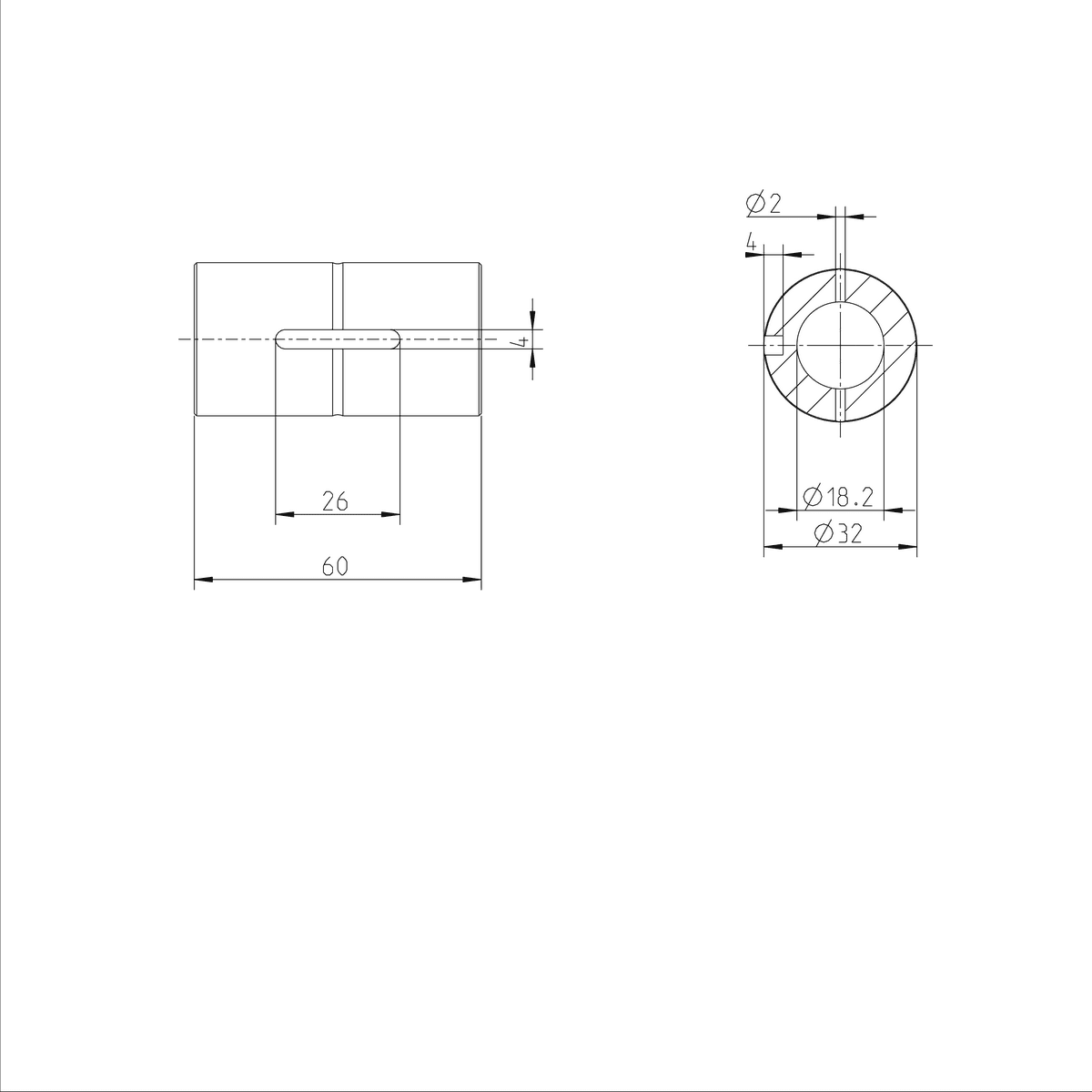

Shaft diameter, detailed [mm]	18.2
Dimension b [mm]	4
Dimension D [mm]	32
Dimension D h6 [mm]	32
Dimension L	60
Dimension L tolerance [mm]	-0.2
Dimension L1	26
Dimension t [mm]	2.5
Dimension t1 [mm]	4
