Шариковая направляющая из углеродистой стали Bosch Rexroth KSA-065-SNS-S-MB-00 [R160760131]

Version

Ball rail system

Nominal size [mm]

65

Format

SNS - Standard guide rail

Material (profiled rail systems)

Carbon steel

Accuracy class

SP - Super precise

Guide rail mounting

For bolting from below

Guide rail cover

Without cover strip

Max. length Lmax [mm]

3746

Minimum length Lmin [mm]

190

Number of holes nB (profiled rail systems)

25

Number of sections

1-piece

Mass m (kg/m) [kg/m]

22.4

Permissible ambient temperature (min. ... max.)

-10 °C ... +80 °C

Note: permissible ambient temperature (min. ... max.)

100 °C admissible for short time. For operation at negative temperatures, please consult us.

Weight [kg]

0

Recommended rail length (formula)

L = nB • T ‒ 4 mm

Product information

Please configure the product to add it to the shopping cart.

Pitch T guide rail [mm]

150

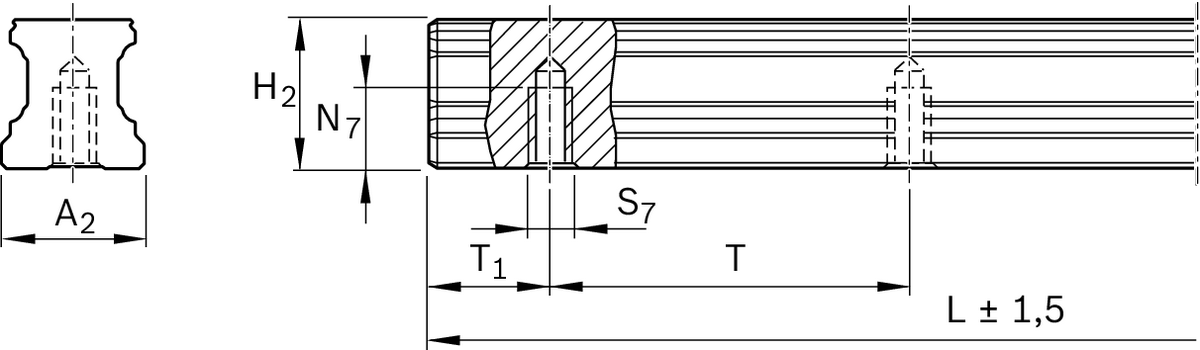

Dimension A2 (profiled rail systems) [mm]

63

Dimension H2 without cover strip (profiled rail systems) [mm]

59.85

Dimension N7 (profiled rail systems) [mm]

25

Dimension S7 thread diameter

M16

Dimension T [mm]

150

Dimension T1 max (profiled rail systems) [mm]

130

Dimension T1 min [mm]

20

Dimension T1 s (profiled rail systems) [mm]

73

Footnote of dimension T1 s (profiled rail systems)

Preferred dimension T1S with tolerances ± 0.75 recommended.
