Шариковая каретка из углеродистой стали Bosch Rexroth KWC-055-SNH-C1-H-2 [R162151310]

Version

Ball rail system

Nominal size [mm]

55

Format

SNH - slimline, normal, high

Model

Heavy-duty ball runner block

Material (profiled rail systems)

Carbon steel

Preload class

C1 - Low preload

Accuracy class

H - Highly accurate

Seal

SS - Standard seal

Ball chain

Without ball chain (standard)

Self-aligning for compensation of misalignments

Without self-alignment

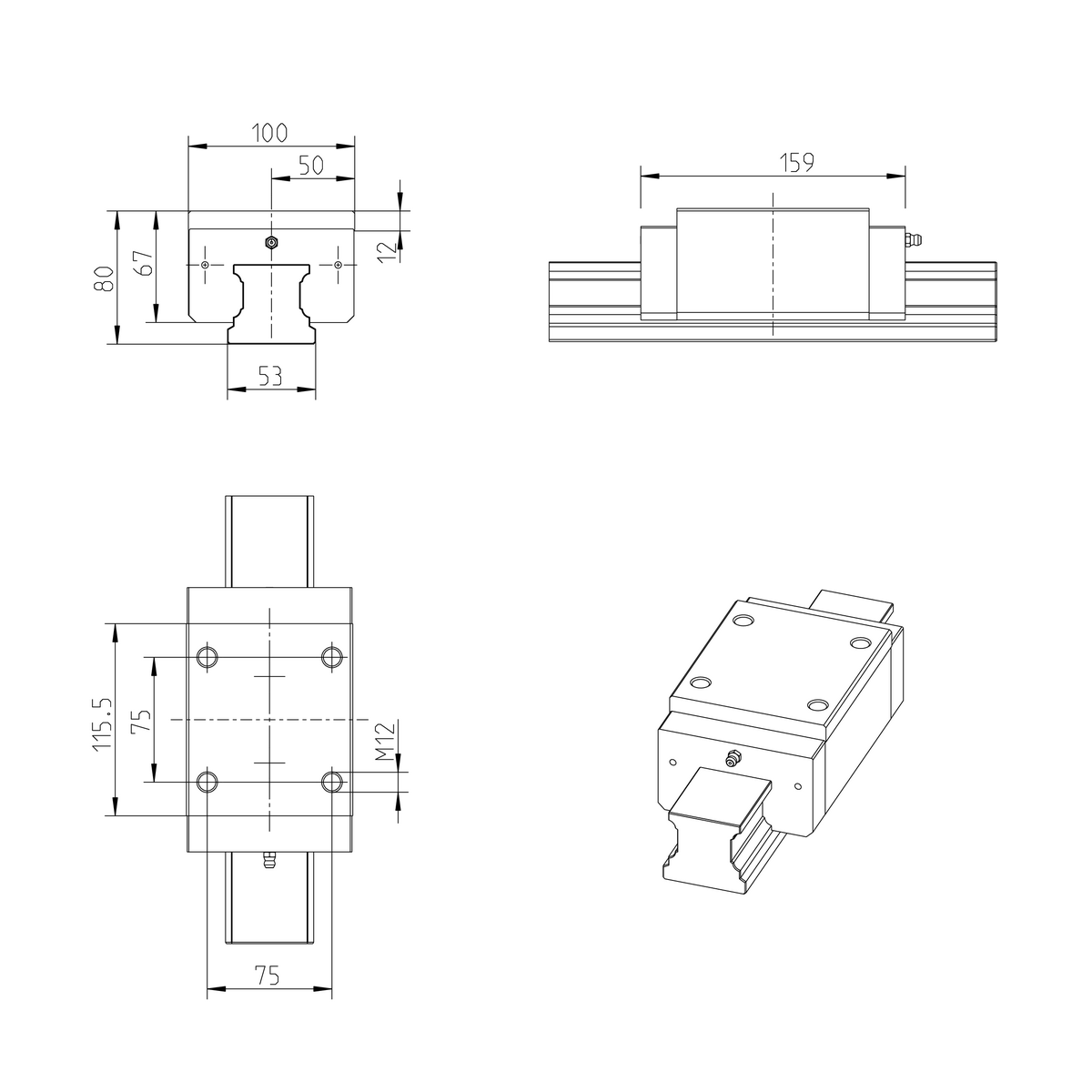

Width of runner block [mm]

100

Length of runner block [mm]

159

Height of runner block [mm]

67

Height runner block with guide rail [mm]

80

Lubrication

With preservation and without initial lubrication

Maximum acceleration rate amax [m/s²]

250

Note: Max. acceleration amax

If Fcomb◡> 2.8 • Fpr : amax = 50 m/s2

Maximum permissible linear speed vmax [m/s]

5

Permissible ambient temperature (min. ... max.)

-10 °C ... +80 °C

Note: permissible ambient temperature (min. ... max.)

100 °C admissible for short time. For operation at negative temperatures, please consult us.

Friction coefficient μ

0.002 ... 0.003

Note: friction coefficient μ

Without friction of seal

Weight [kg]

4.7

Dynamic load capacity C50 [N]

137000

Note: dynamic load capacity C50

Dynamic load capacity and load moments based on a travel of 50,000 m.

Dynamic load capacity C100 [N]

109000

Note: dynamic load capacity C100

Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

Static load capacity C0 [N]

174000

Dynamic torsional moment load capacity Mt50 [Nm]

4390

Note: Dynamic torsional moment load capacity Mt50

Dynamic load capacity and load moments based on a travel of 50,000 m.

Dynamic torsional moment load capacity Mt100 [Nm]

3480

Note: Dynamic torsional moment load capacity Mt100

Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

Static torsional moment load capacity Mt0 [Nm]

5550

Dynamic longitudinal moment load capacity ML50 [Nm]

2920

Note: Dynamic longitudinal moment load capacity ML50

Dynamic load capacity and load moments based on a travel of 50,000 m.

Dynamic longitudinal moment load capacity ML100 [Nm]

2320

Note: Dynamic longitudinal moment load capacity ML100

Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

Static longitudinal moment load capacity ML0 [Nm]

3690

Pitch T guide rail [mm]

120

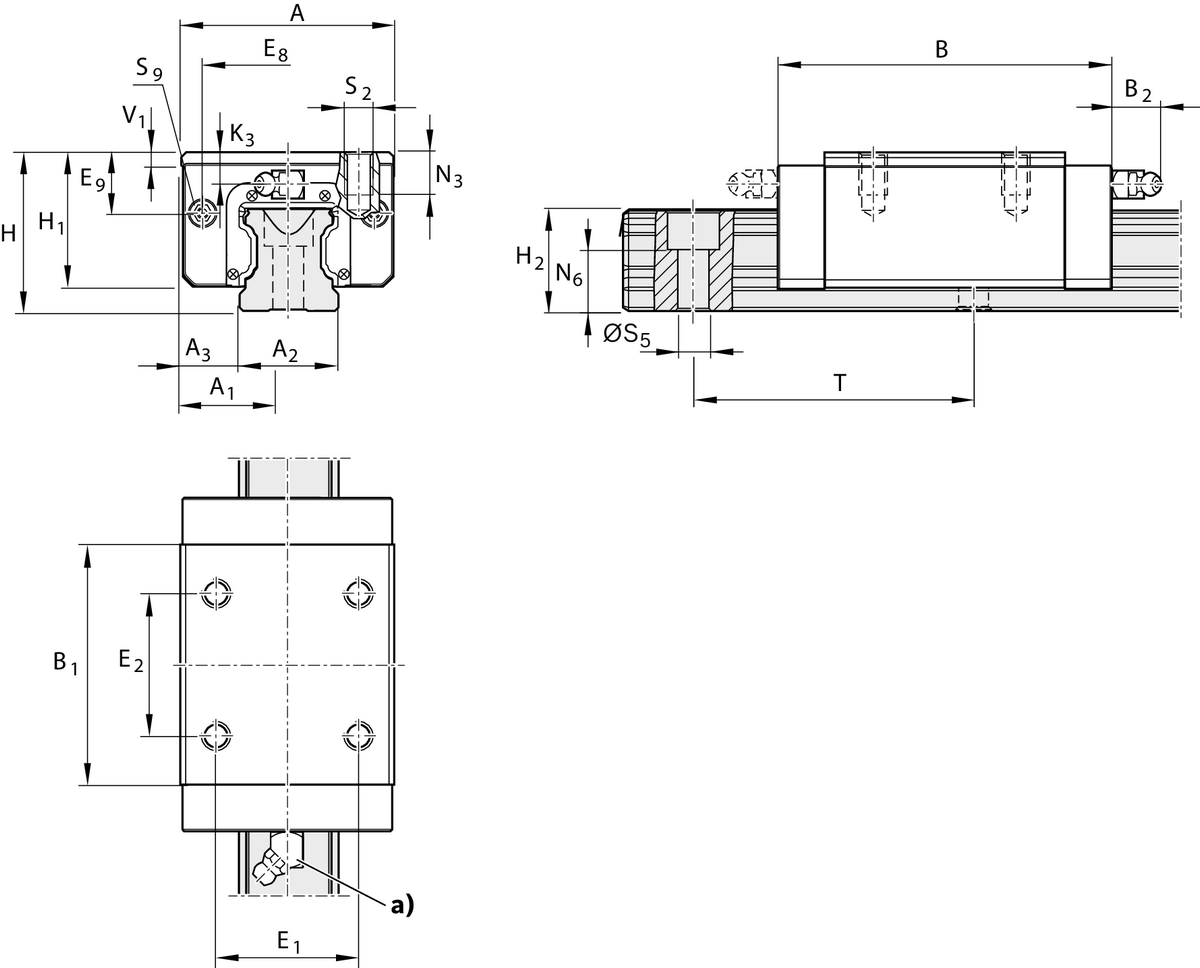

Dimension A (profiled rail systems) [mm]

100

Dimension A1 (profiled rail systems) [mm]

50

Dimension A2 (profiled rail systems) [mm]

53

Dimension A3 (profiled rail systems) [mm]

23.5

Dimension B (profiled rail systems) [mm]

159

Dimension B tolerance (profiled rail systems) [mm]

+0.5

Dimension B1 [mm]

115.5

Dimension E1 [mm]

75

Dimension E2 (profiled rail systems) [mm]

75

Dimension E8 (profiled rail systems) [mm]

80

Dimension E9 (profiled rail systems) [mm]

32.3

Dimension H [mm]

80

Dimension H1 (profiled rail systems) [mm]

67

Dimension H2 with cover strip (profiled rail systems) [mm]

48.15

Dimension H2 without cover strip (profiled rail systems) [mm]

47.85

Dimension K3 (profiled rail systems) [mm]

19

Dimension N3 (profiled rail systems) [mm]

19

Dimension N6 (profiled rail systems) [mm]

29

Dimension N6 tolerance (profiled rail systems) [mm]

±0.5

Dimension S2 (profiled rail systems)

M12

Dimension S5 (profiled rail system) [mm]

16

Dimension S9

M5x8 mm

Dimension S9 thread diameter (profiled rail systems)

M5

Dimension S9 lead [mm]

8

Dimension T1 min [mm]

20

Dimension V1 [mm]

12
